Blue Sea - ANL Fuse - 400 Amp - PN. 5136

Click to enlarge

MPN 5136

£33.28

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

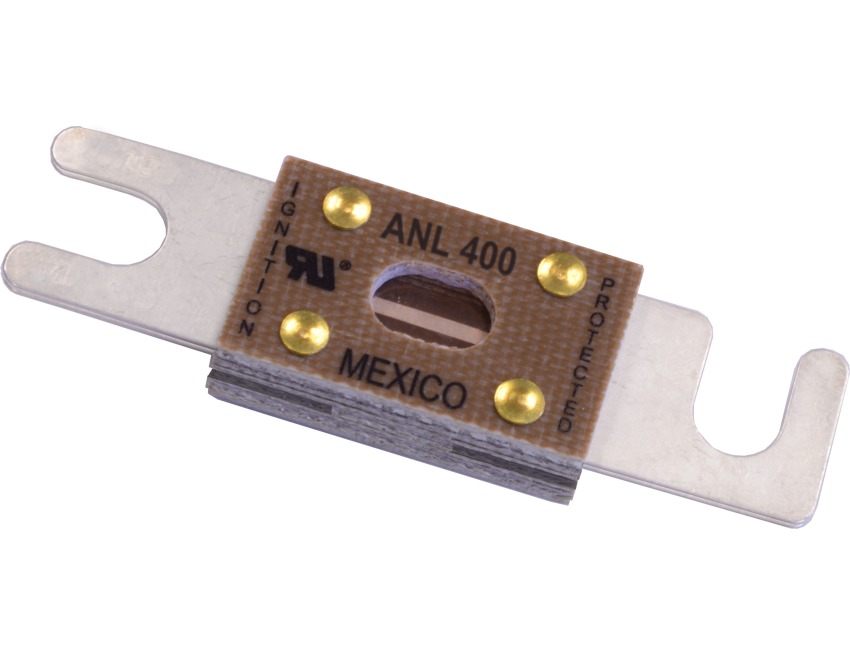

Blue Sea ANL Fuse - 400 Amp

Part No. 5136

Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats (35-500 Amp only)
Silver-plated connector blades for corrosion resistance
Visible indication of blown condition
6,000 Ampere Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
For use with Blue Sea Systems' ANL Fuse Blocks

Specifications:
Amperage - 400A
Ignition Protected - Yes
Maximum Voltage - 32V DC
Interrupt Capacity - 6000A @ 32V DC
Weight - 0.08lb (0.04 kg)

Specification List

Sub-Type ANL Weight 0.08lb (0.04 kg)
Country of Origin USA Tariff Code 85389099
Type Fuses
