Blue Sea - Analog Meter Shunt - 100A - PN. 9230

Click to enlarge

MPN 9230

£54.22

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

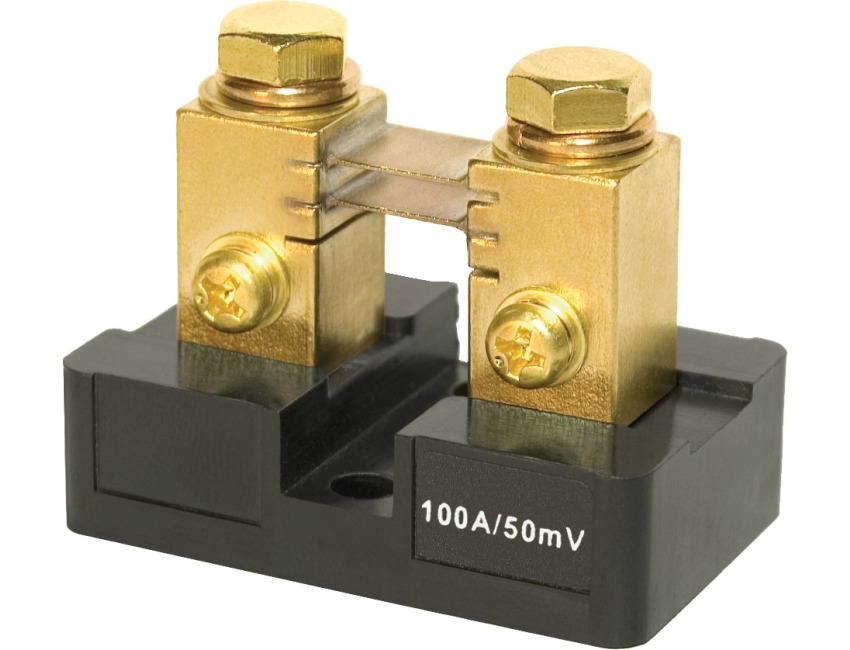

Blue Sea Analog Meter Shunt - 100A

Part No. 9230

For use with DC Ammeters
For continuous operation, it is recommended that shunts not to be run at more than two-thirds (66%) the rated current under normal conditions

Specifications:
Continuous Duty - 66% of Rated Current
Full Scale - 50 Milivolts
Intermittent Duty - 300% @ 3 Seconds100% @ 5 Minutes
Ratio - 100A DC/50mV DC
Shunt Type - Resistive - Manganin Metal Element
Weight - 0.20lb (0.09 kg)

Specification List

Type Meters Sub-Type Shunt
Weight 0.20lb (0.09 kg) Country of Origin USA
Tariff Code 91040000
