Blue Sea - AMI / MIDI Safety Fuse Block - PN. 7720
Click to enlarge
MPN 7720
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

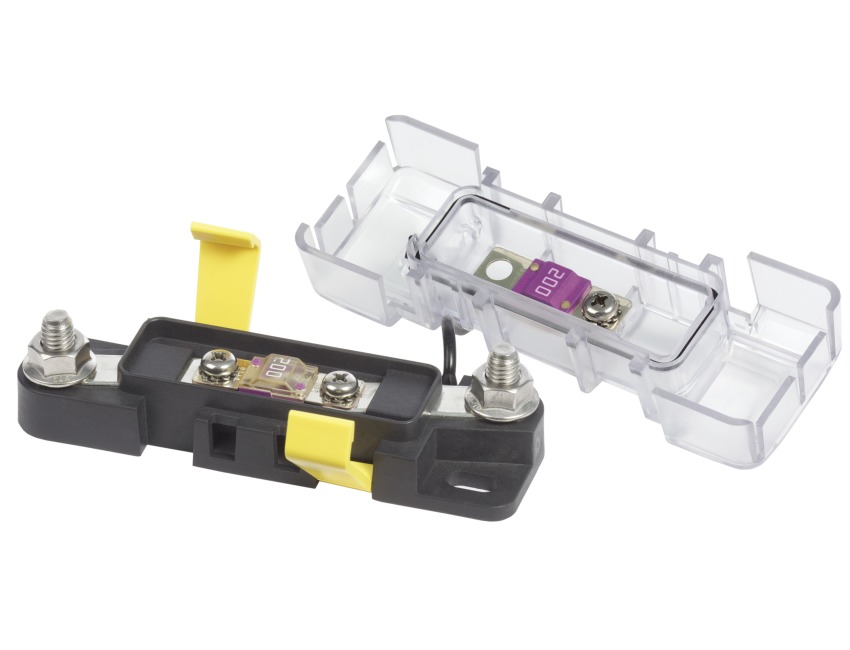

Blue Sea AMI / MIDI Safety Fuse Block (Fuses not included)
Part No. 7720Ignition protected for installation aboard gasoline or diesel powered boats
Sealed cover protects fuses from the harsh marine environment
Insulating cover satisfies ABYC/USCG insulation requirements
Cover breakouts allow wire access in any direction
200A maximum with 4/0 cable
Accepts Blue Sea Systems Square Format standard or custom label
Fuses sold separately
Specifications:
Maximum Amperage - 200A
Maximum Voltage - 32V DC
Stud Size - M8 × 1.25
Fuse Screw - M5 × 0.8
Recommended Screw Torque - 27 in-lb (3.05 N·m)
Recommended Stud Torque - 120 in-lb (13.56 N·m)
Ring Terminal Size - M8 (5/16")
Weight - 0.15lb (0.07 kg)
Optional Accessories -
- Any AMI Fuses
Works With -
- All PowerBar 1000
Specification List
| Type | Fuse Blocks | Sub-Type | - |
|---|---|---|---|
| Weight | 0.15lb (0.07 kg) | Country of Origin | USA |
| Tariff Code | 85389099 |
