Blue Sea - AC Rotary Switch Panel 30 Ampere 2 positions + OFF, 2 Pole - PN. 8359
Click to enlarge
MPN 8359
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

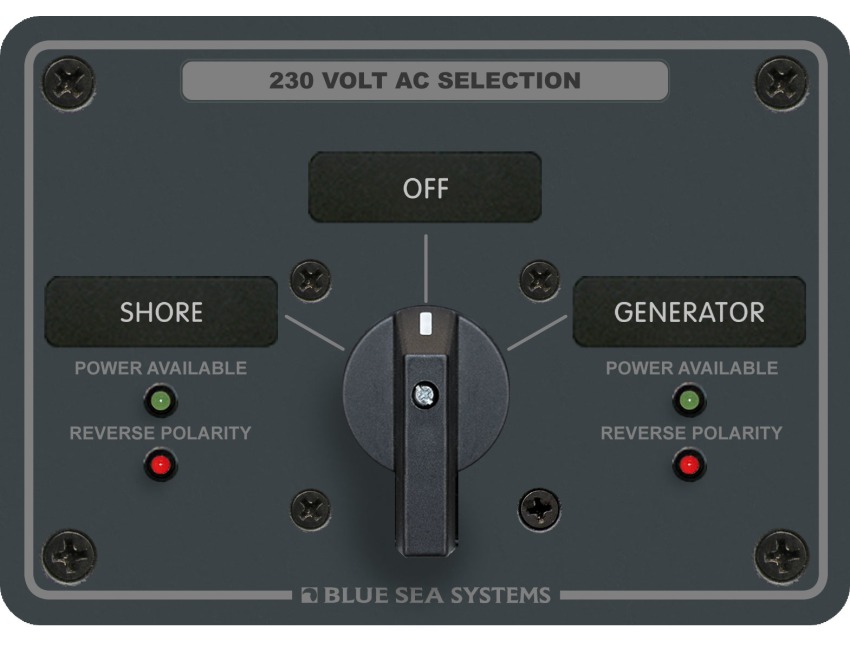

Blue Sea AC Rotary Switch Panel 30 Ampere 2 positions + OFF, 2 Pole
Part No. 8359Switches 2 - 230 Volt AC sources
Includes 9011 heavy duty industrial rated switch
Two-part polyurethane slate gray finish
Heavy 1/8" aluminum 5052 alloy
Red reverse polarity LED indicators
Green power available LED indicators
Compact solution when circuit protection is provided elsewhere
Allows connecting one of two or three different AC sources to one circuit
Specifications:
Positions - 2 + OFF
Nominal Voltage - 230V AC
Poles - 2
Maximum Amperage - 30A
Source In - 2
Height - 3.75in (95.25 mm)
Width - 5.25in (133.35 mm)
Depth - 1.91in (48.51 mm)
Weight - 0.65lb (0.29 kg)
Specification List
| Type | AC Panels | Sub-Type | - |
|---|---|---|---|
| Weight | 0.65lb (0.29 kg) | Country of Origin | USA |
| Tariff Code | 85371000 |
