Blue Sea - AC Rotary Switch - OFF + 2 Positions 120V / 240V AC 30A - PN. 9009
Click to enlarge
MPN 9009
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

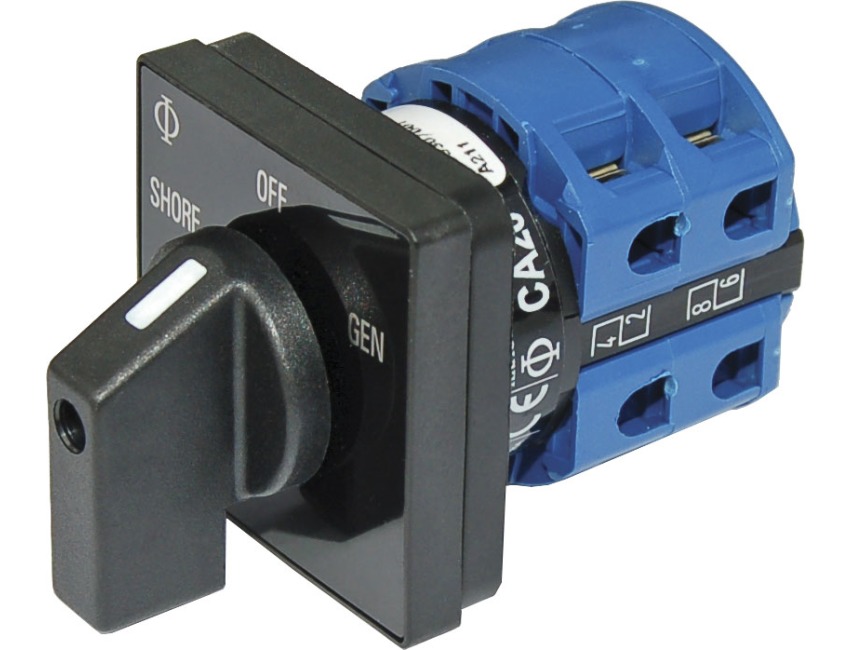

Blue Sea AC Rotary Switch - OFF + 2 Positions 120V / 240V AC 30A
Part No. 9009Switches 2 - 120 or 240 Volt AC sources
Compact solution when circuit protection is provided elsewhere
Allows connecting one of two different AC sources to one circuit
Mounts in panels up to 0.16" (4.00mm) thick
Heavy duty industrial rated switch
Intuitive function - One hand operation
UL listed
Specifications:
Positions - 2 + OFF
Source Selection - 2
Nominal Voltage - 120V / 240V
Poles - 2
Load Circuits Out - 1
Maximum Amperage - 30A
Maximum Voltage - 600V AC
Source In - 2
Height - 1.89in (48.01 mm)
Width - 1.89in (48.01 mm)
Depth - 1.91in (48.51 mm)
Weight - 0.70lb (0.32 kg)
Specification List
| Type | Switches | Weight | 0.70lb (0.32 kg) |
|---|---|---|---|
| Sub-Type | Rotary | Country/Region of Manufacture | United States |
