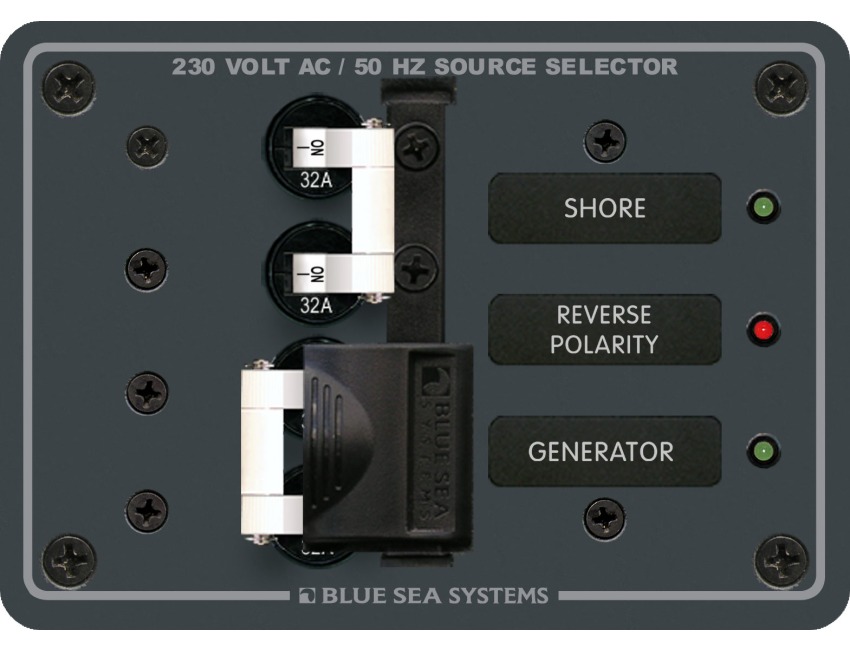

Blue Sea - AC Panel - 32A Toggle Source Selector [European] - PN. 8161
Click to enlarge
MPN 8161
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Blue Sea AC Toggle Source Selector [European]
Part No. 8161Double pole AC main circuit breakers with installed lockout slide
Prevents connecting both AC sources simultaneously
Maximum panel amperage - 50 Amperes
Red reverse polarity indicating LED
All hot, neutral and safety ground buses installed, fully pre-wired
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions
Specifications:
Source Selection - 2
Nominal Voltage - 230V AC
Height - 3.75in (95.25 mm)
Width - 5.25in (133.35 mm)
Weight - 1.84lb (0.83 kg)
Specification List
| Type | AC Panels | Sub-Type | - |
|---|---|---|---|
| Weight | 1.84lb (0.83 kg) | Country of Origin | USA |
| Tariff Code | 85371000 |
