Blue Sea - 4 way Compact Blade Fuse Block Box - MPN 5045

Click to enlarge

Code154806685364

MPN 5045

£48.07

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

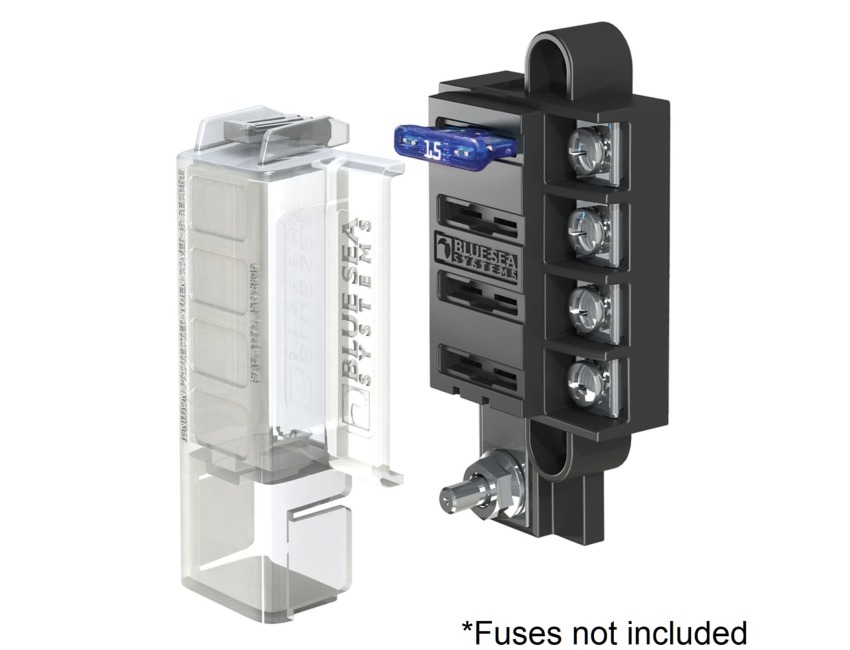

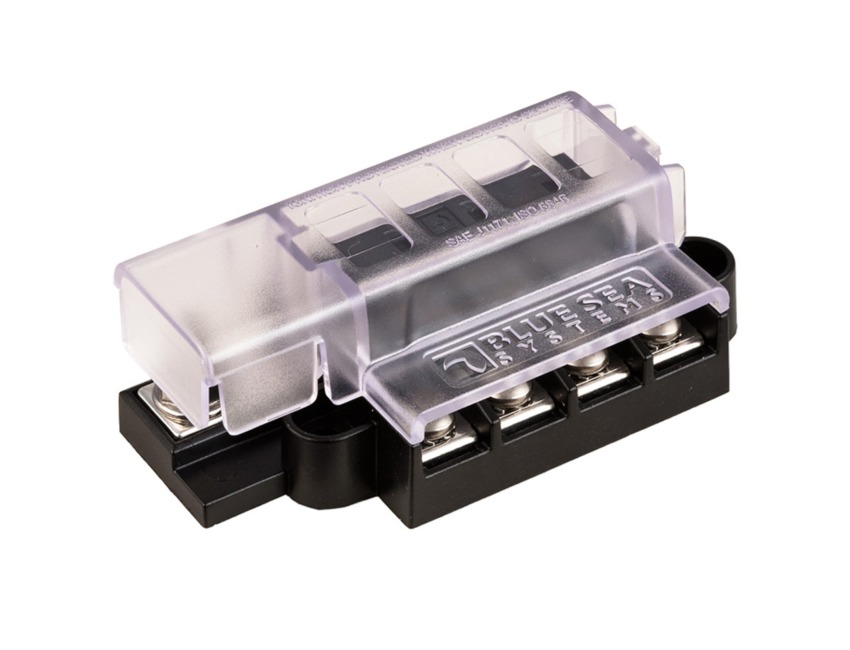

Blue Sea - 4 way Compact fuse Block

** Fuses sold separately **

Part number: 5045

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.

Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

Single side design allows wire entry from one side to minimize footprint

Insulating cover meets ABYC/USCG insulation requirements

Tin-plated copper buses and fuse clips

Accepts ring or snap fork type terminals

Includes 4 write-on circuit labels

** Fuses sold separately **

Specification List

Type Fuse box Sub-Type 4 way
Country/Region of Manufacture United States
