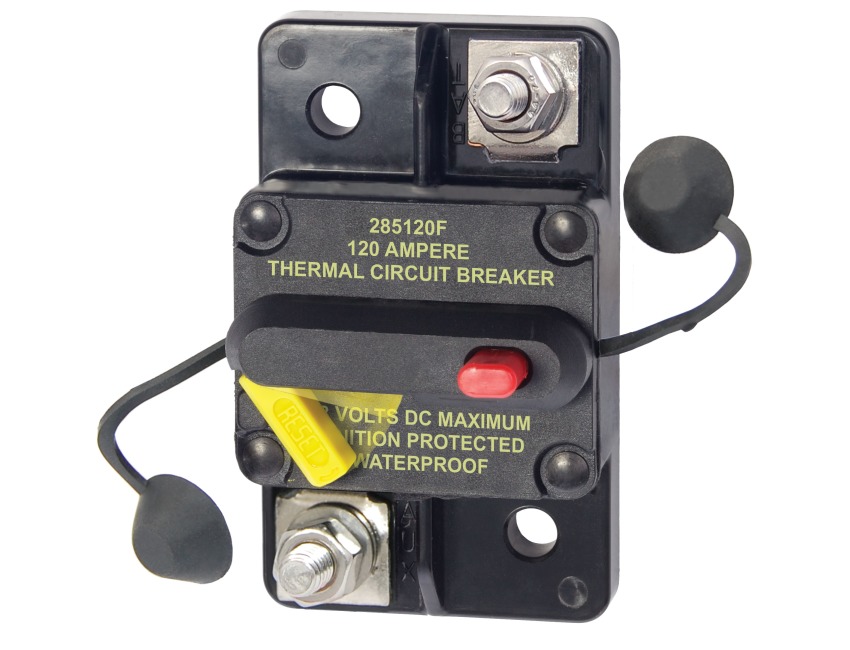

Blue Sea - 285-Series Circuit Breaker - Surface Mount 120A - PN. 7188
Click to enlarge
MPN 7188
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Blue Sea - 285-Series Circuit Breaker - Surface Mount
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirementsWeather Resistant
- Combines switching and circuit breaker function into one unit*"Trip Free" - cannot be held closed after trip
Specifications:
Amperage - 120A
Maximum Voltage - 48V DC
Mounting - Surface Mount
Circuit Breaker Type - Thermally responsive Bi-metal blade
Terminal Stud Torque - 50 in-lb (5.65 Nm)
Interrupt Capacity (The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage) - 3000A @ 48V Achieved using SAE J1625
Minimum Operating Temperature -40° C
Maximum Operating Temperature 85° C
Circuit Breaker Class - Type III - switchable/manual reset - trip free
Terminal Stud - M6 (accepts 1/4" Ring Terminal)
Weight - 0.152 Kg
Specification List
| Sub-Type | 285-Series Surface | Weight | 0.152 Kg |
|---|---|---|---|
| Country of Origin | USA | Tariff Code | 853620 |
| Type | Circuit Breakers |
