Blue Sea - 285-Series Circuit Breaker - Panel Mount 60A - PN. 7084
Click to enlarge
MPN 7084
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

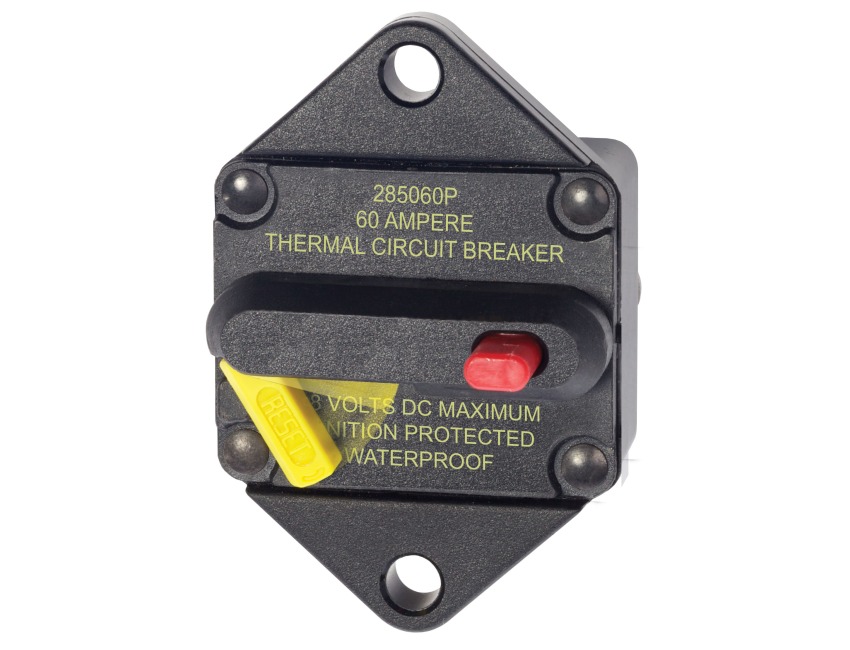

Blue Sea - 285-Series Circuit Breaker - Panel Mount
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit
- "Trip Free" - cannot be held closed after trip
Specifications:
- Maximum Voltage - 48V DC
- Mounting - Panel Mount
- Circuit Breaker Type - Thermally responsive Bi-metal blade
- Terminal Stud Torque - 50 in-lb (5.65 Nm)
- Interrupt Capacity (The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage) - 3000A @ 48V Achieved using SAE J1625
- Minimum Operating Temperature -40° C
- Maximum Operating Temperature 85° C
- Circuit Breaker Class - Type III - switchable/manual reset - trip free
- Terminal Stud - M6 (accepts 1/4" Ring Terminal)
- Weight - 0.50lb (0.23 kg)
Specification List
| Sub-Type | 285 Series | Weight | 0.23 kg |
|---|---|---|---|
| Country of Origin | USA | Tariff Code | 853620 |
| Type | Circuit Breakers |
