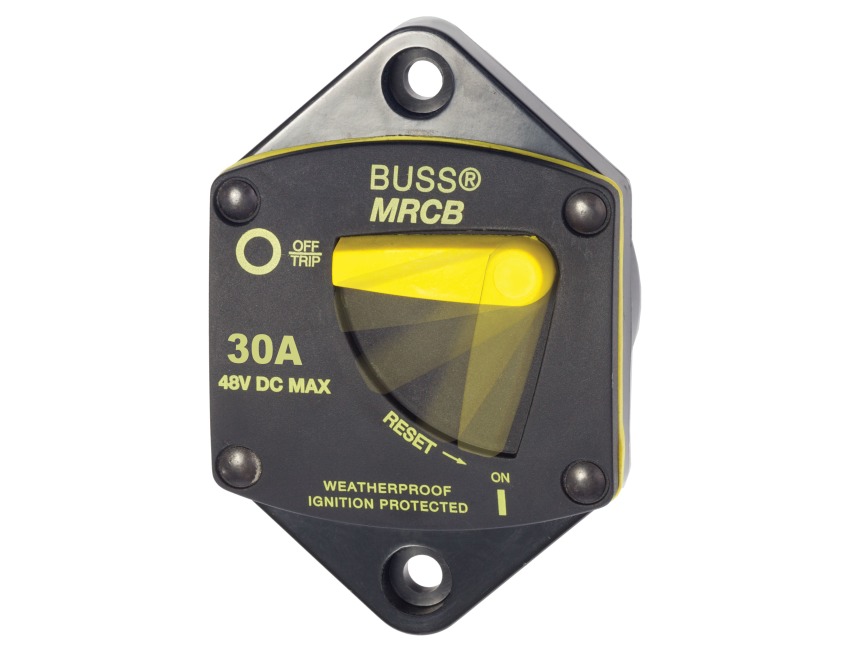

Blue Sea - 187-Series Circuit Breaker - Panel Mount 30A - PN. 7036

Blue Sea - 187-Series Circuit Breaker - Panel Mount

• Combines switching and circuit protection into a single device*
• Clear, single lever operation
• Trip Free design cannot be held ON during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Large Clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 M8 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected - Safe for installation aboard gasoline powered boats

* Do not use as a switch where high inrush currents are expected

Specifications:

• Maximum Voltage - 48V DC
• Mounting - Panel Mount
• Circuit Breaker Type - Thermally responsive Bi-metal blade
• Terminal Stud Torque - 75 in-lb (8.47 Nm)
• Interrupt Capacity (The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage) - 1500A @ 48V Achieved using SAE J1625
• Minimum Operating Temperature -40° C
• Maximum Operating Temperature 85° C
• Circuit Breaker Class - Type III - switchable/manual reset - trip free
• Terminal Stud - M8 (accepts 5/16"" Ring Terminal)
• Weight - 0.50lb (0.23 kg)
