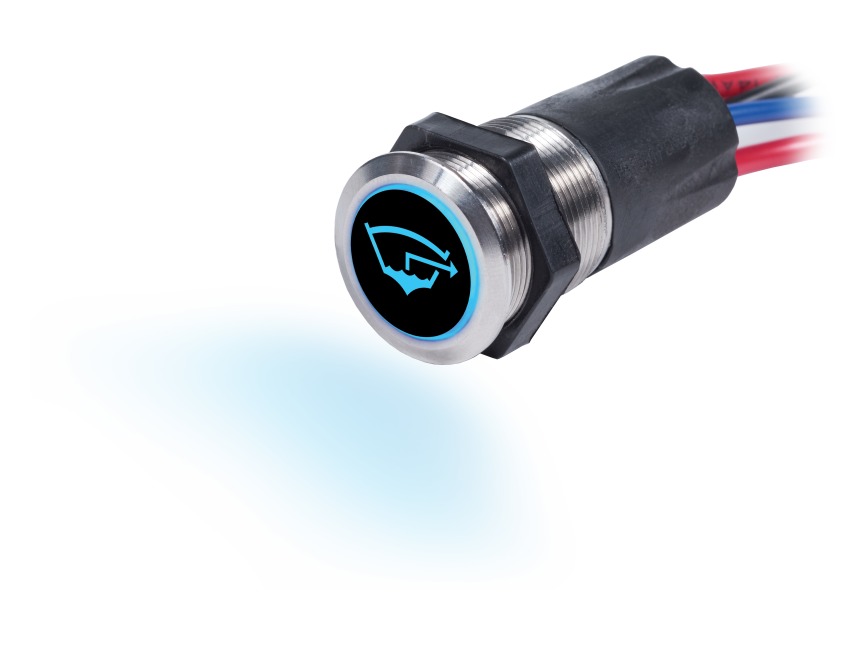

Blue Sea - 15A Push Button Backlit Switch OFF-ON - PN. 4180

Click to enlarge

MPN 4180

£78.64

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Blue Sea 15A Push Button Backlit Switch OFF-ON

Part No. 4180



Specifications:
Action - OFF-ON
Amperage - 15A @ 12V DC
Nominal Voltage - 12V DC
Maximum Voltage - 15V DC
Maximum LED Operating Current - 20mA
Max Panel Thickness - 0.24in (6.1 mm)
Mounting Hole - 7/8" (22mm)
Switching Cycles - 10,000
Temperature Range - -20°C to 55°C
Termination - 3" - Bare Wire Pigtail
Wire Size - Black & Blue Wires 18 AWGRed & Orange Wires 16 AWG
Weight - 0.35lb (0.16 kg)

Specification List

Type Switches Sub-Type Push Button
Weight 0.35lb (0.16 kg) Country of Origin USA
Tariff Code 85371000
