Blue Sea - 10A Push Button LED Ring Switch OFF-(ON) Red - PN. 4163

Click to enlarge

MPN 4163

£24.65

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

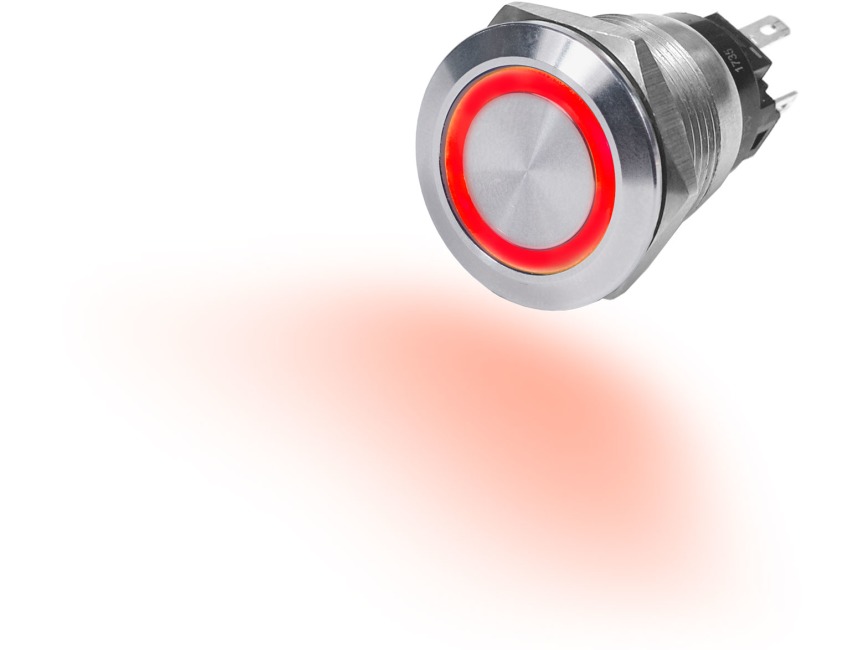

Blue Sea 10A Push Button LED Ring Switch OFF-(ON) Red

Part No. 4163



Specifications:
Action - OFF-(ON)
Amperage - 10A @ 12V DC Resistive
3A @ 12V Inductive
Nominal Voltage - 12V DC
Maximum LED Operating Current - 20mA
Minimum Operating Temperature - -30° C
Maximum Operating Temperature - 70° C
Minimum Storage Temperature - -55° C
Maximum Storage Temperature - 85° C
Illumination - Independent – Separate contacts for LED power
Max Panel Thickness - 0.31in (7.87 mm)
Mounting Hole - ¾” (19mm)
Switching Cycles - 40,000
Termination - 5 – 0.110inch Quick Connect terminals
Weight - 0.20lb (0.09 kg)

Specification List

Type Switches Sub-Type Push Button
Weight 0.20lb (0.09 kg) Country of Origin USA
Tariff code 85371000
