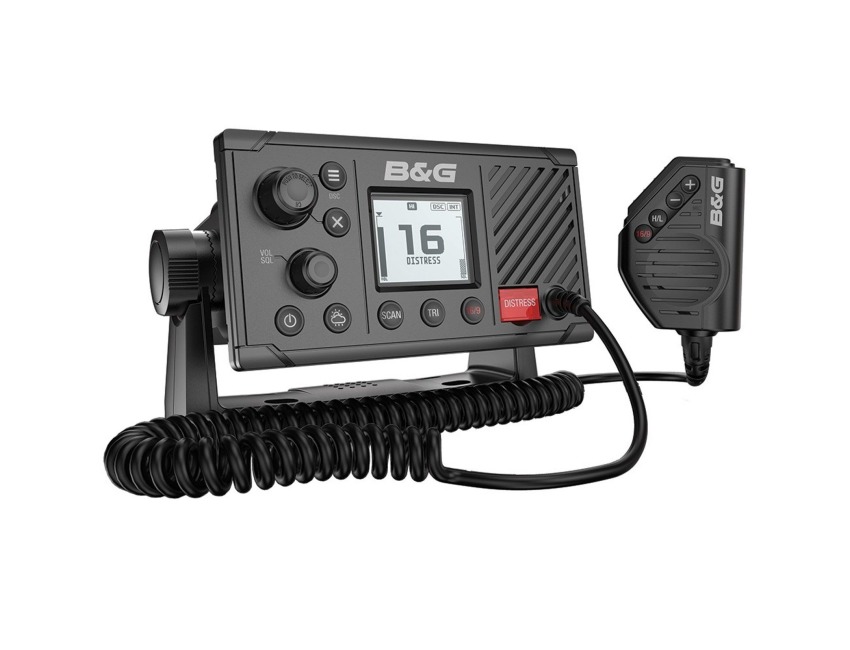

B&G V20S - Marine fixed Mount VHF Radio with GPS, DSC & NMEA2000 - 000-14492-001

B&G V20S - Marine fixed Mount DSC VHF Radio with GPS, DSC & NMEA2000

Part number: 000-14492-001 (Conforms to new 2018 EU Standards)

The versatile B&G V20S VHF radio is ideal for the family cruising or club racing sailing yacht.

Perfect as a stand-alone VHF system for use in the cockpit or at the navigation station.

The sleek low profile design, clear bright display, and easy button access means this VHF both looks great and offers intuitive modes of operation.

The B&G V20S VHF features all the international channels, is Class D DSC Approved and NMEA 2000® compatible.

High Visibility Display

See clearly in bright daylight with a high contrast black-on-white display. Night-time visibility has also been optimised,

with an inverted white-on-black night mode to reduce light emission and preserve your night vision.

Intuitive Controls

A rotary channel dial facilitates quick channel selection, while large and amply spaced buttons provide quick access to all key functions.

Dedicated Channel 16 keys enable instant access to the emergency channel, and are included on both the radio’s front panel and its four-button fist mic.

Class D DSC Approved

An integrated Distress button allows automated DSC distress calling.

DSC capabilities also enable direct calling to other DSC-equipped vessels from a Simrad multifunction display,

including direct calls to AIS targets (a compatible display and AIS receiver are required).

Tri-Channel Watch Function

Scan between the current channel, emergency channel 16, and another user-configurable priority channel (non US models).

All International Channels

The V20 is designed for global use and supports all international channels including UK, Europe, USA and Canada.

My Channel Mode

Select your favourite channels for quick and easy access.

A long press on the channel dial enters My Channel Mode, where you can cycle through just your selected favourites using the rotary channel dial.

Multiple Scan Modes

Scan through all available channels or just your selected favourites.

In either scan mode, emergency channels can optionally be given priority to reduce the chance of missing distress calls or other urgent safety messages.

Easy Bracket or Flush-Mount Installation

An included gimbal bracket enables table-top, overhead, or bulkhead installation.

Flush-mount installation is also supported, with an easy mount-from-front solution, to match the low-profile style of B&G Glass Helm displays and accessories.

NMEA 2000 ® allows interfacing with integrated on board systems.

Specifications:

General

Frequency Range: Transmit 156.025~157.425 MHz

Frequency Range: Receive 156.050~163.275 MHz

Number Of Channels US / INT

Oscillate Mode PLL

Modulation FM DSC

Channel Spacing 25KHz

Frequency Stability ±5 PPM

Temperature range_-15°C to +55°C (5°F to 131°F)

Normal Working Voltage +13.6 V DC

Minimum operating Voltage =10 V DC

Low battery detect Voltage 10.5 ± 0.5 V DC

Digital Selectivity Calling (DSC) Class D

RECEIVER

Intermediate Frequency : 1st 38.85/21.7 MHz

Intermediate Frequency : 2nd 450 KHz

Sensitivity : 12dB SINAD =-6 dBuV(EMF)

Squelch Sensitivity: at tight = 6 dBuV(EMF)

Spurious Response Rejection Ratio =70 dB

Adjacent Channel Selectivity =70 dB

Intermodulation Response =68 dB

S/N at 3KHz Dev. =40 dB

Audio Output Power At THD 10% =2.5 W

Audio Distortion =10 %

Audio Response +1 to -3dB of 6dB/octave from 300hz to 3kHz dB

Current Drain : Max Audio Power =1.5 A

Current Drain : Stand-By =0.5 A

2ND RX Sensitivity For 12dB SINAD = 0 dBuV(EMF)

2ND RX bit error ratio@-107dBm = 10-2

Transmitter

Frequency error =±1.5KHz

RF Power Hi23W ± 2W :Lo 0.8W ± 0.2W

Maximum Deviation =± 5 KHz

S/N at 3KHz Dev. =40 dB

Modulation Distortion ±3KHz =10 %

Audio Response at 1KHz Dev. +1 to -3dB of 6dB/octave from 300hz to 3KHz

Spurious/Harmonic Emissions: Hi/LO =0.25uW

Modulation Sensitivity =15 mV

Current Drain At 12V DC Hi Power =6A: Lo Power =1.5A

DSC TX deviation at 1.3K 2.6±0.26 KHz

DSC TX deviation at 2.1K 4.2±0.42KHz

ATIS TX deviation at 1.3 KHz 1.3±0.13 KHz

ATIS TX deviation at 2.1 KHz 2.1±0.21 KHz
