BEP - Z BUS BAR Pro Installer + COVER 4 STUDS 6MM & 10 SCREW TERM. 4MM 2X200A 50V DC - 777-Z10W-200

Click to enlarge

Codex

MPN BEP-777Z10W200

Was £33.26
Now: £24.17

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

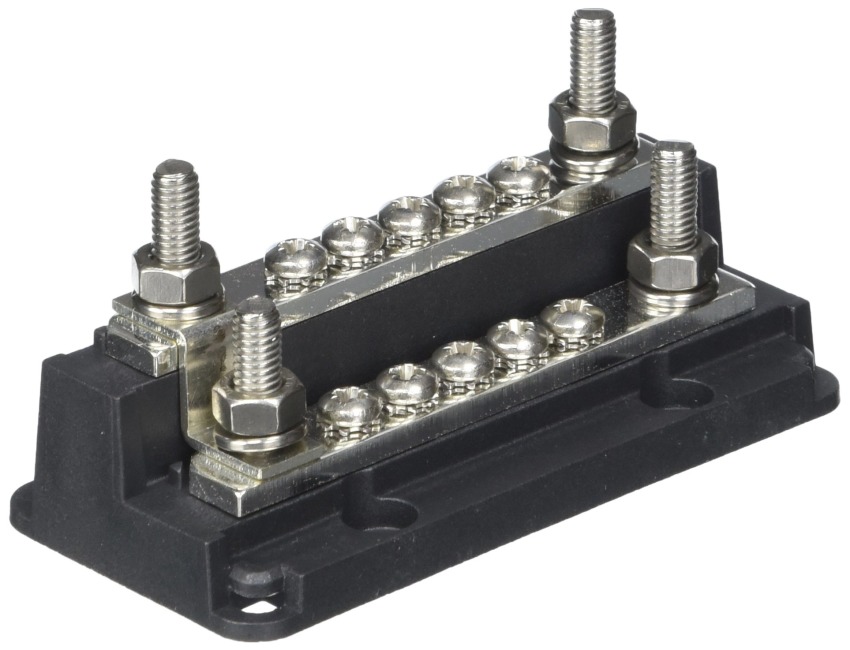

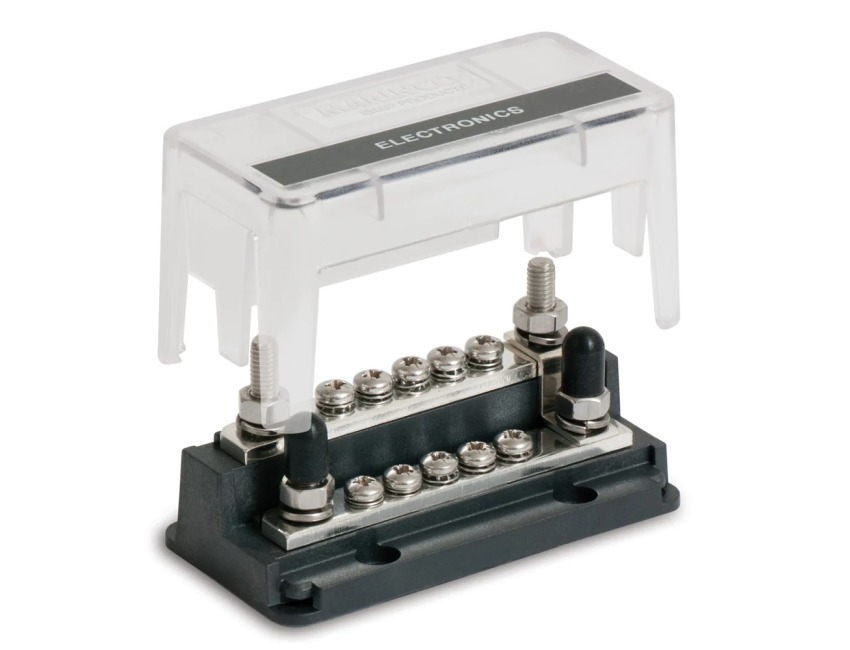

BEP - Z BUS BAR PRO INSTALLER WITH COVER 4X STUDS 6MM (1/4") AND 10X SCREW TERMINALS 4MM (5/32") 2X200A 50V DC

Part No: BEP-777Z10W200

Marinco BEP Products have created a completely new concept for small cable termination with the Z-Bar range. These busbars maximize power density by utilizing high and low level bars to optimize cable runs, saving even more installation space.

Specifications:

10 Way and 18 Way versions

4× 6mm (1/4") studs with anti-seize lubricant

4mm (5/32") terminals with captive lock washers

200A maximum per bar (2× 200A)

50 VDC

Tinned CDA102 Copper conductors

Stainless steel studs, washers, nuts for longevity in the marine environment

Metric threads

Specification List

Sub-Type - Weight -
Country of Origin CN Tariff Code 85389099
Type POWER DISTRIBUTION & MANAGEMENT / BUS BARS & STUDS
