Description

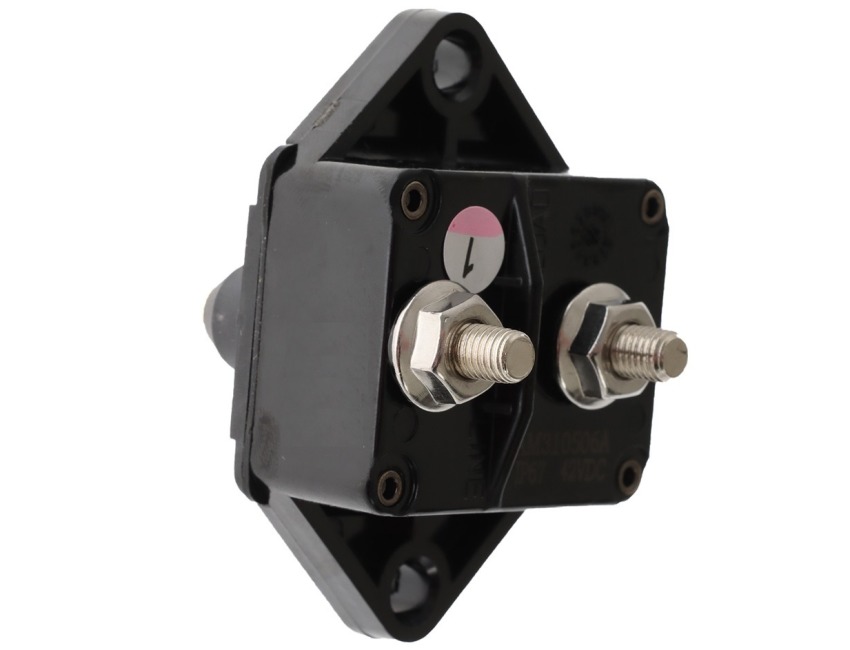

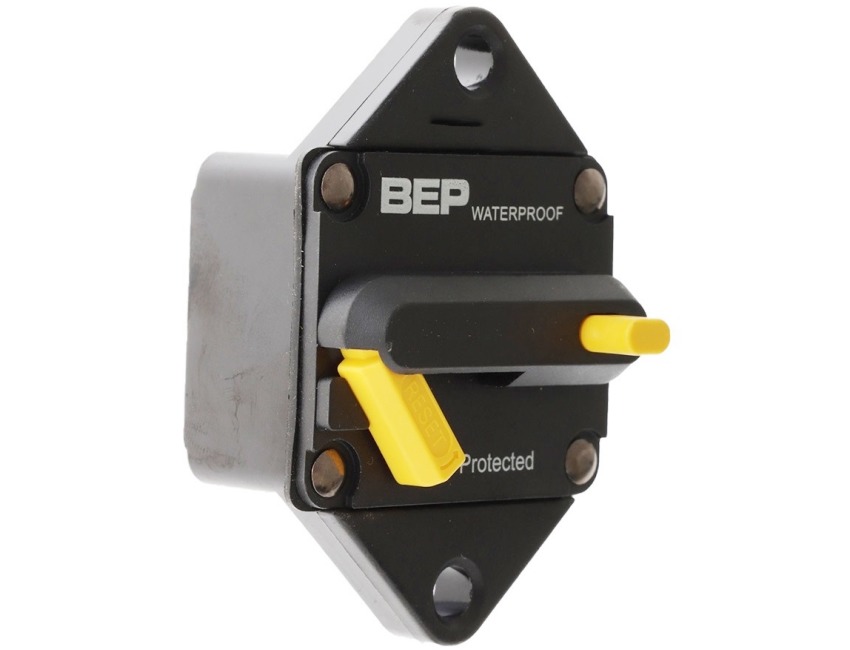

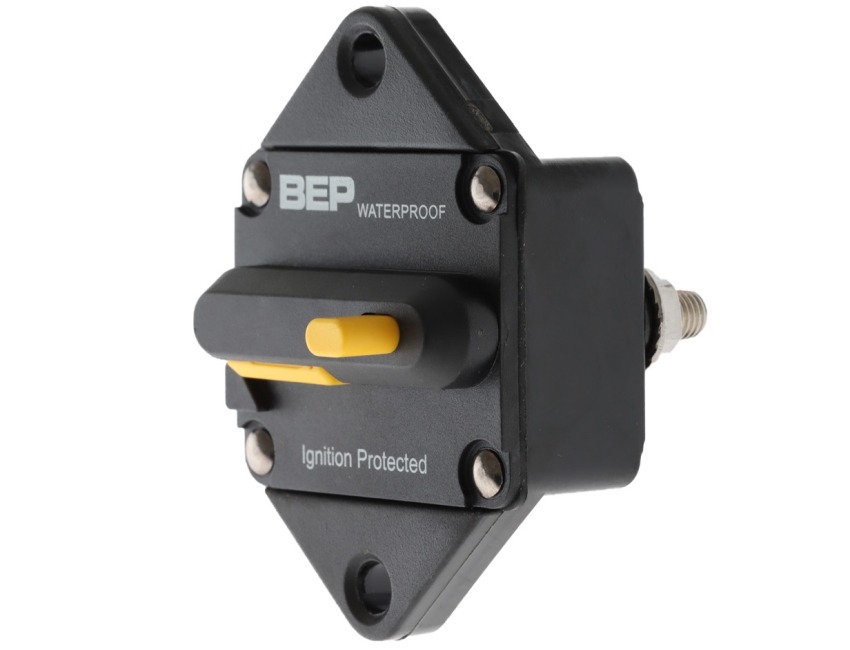

BEP - Circuit Breaker HD 50A SWITCHABLE Reset Panel Mount
Part number: 185050P/DSP
The BEP Circuit Breaker HD 50A is a heavy-duty, single-pole thermal type breaker designed for various applications including auxiliary and accessory circuits, trucks, buses, RVs, marine applications, battery chargers, and DC audio systems.
Series 184 and 185 are sealed to withstand engine compartment and bilge area conditions, featuring stud insulators on covered units with F (Surface Mount) bases, tin-plated copper studs, brass rivets, and stainless steel locking nuts.
Ratings: 50A; MAX 30V DC, 3000A interrupt capacity
Operating Temperature: -25°F (-32°C) to 180°F (82°C)
Storage Temperature: -30°F (-34°C) to 300°F (149°C)
Housing: Thermoset plastic; UL rated 94VO; 311°F (155°C)
Mounting: Panel or surface
Terminal Stud Torque: 50 in-lb (5.6Nm) max.
Indicator: Series 184 and 185 have a unique reset mechanism providing visible indication of tripped condition.
Specification List
| Type | Circuit Breaker |
|---|
