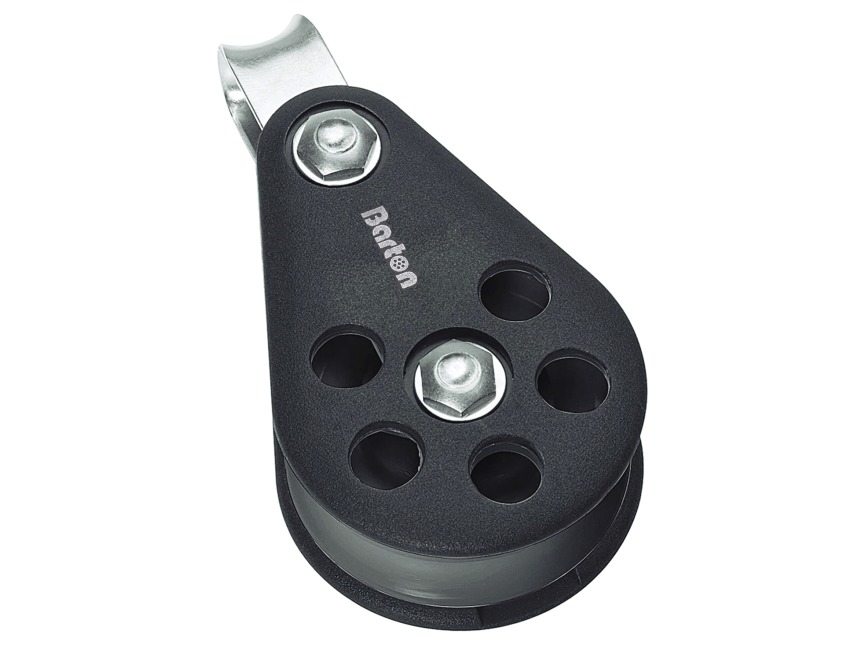

Barton Marine Size 7 Single Fixed Eye Block - 70mm - Plain bearing - N07110
Click to enlarge
Code184566031304
MPN BAN07110
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Barton Size 7 Plain Block Single Fixed Eye
Part number: N07110
This range of high load cruiser blocks are of a rugged construction featuring high quality injection moulded side plates with all load carrying components from 316 stainless steel.
Side plates are through bolted and riveted for added strength and security.
This good looking and versatile range is designed for use on larger cruising and racing yachts.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
Fixed Eye - Has a plain eye attachment.
Specification
Metric (Imperial)
Sheave Size: 70 × 20 mm (2 3/4" × 3/4")
Maximum Rope Diameter 14 mm (9/16")
Breaking Load 2500 kg (5500 lb)
Safe Working Load 1250 kg (2750 lb)
Length 137 mm
Weight 255 g
Specification List
| Type | Single block | Manufacturer | Barton Marine |
|---|---|---|---|
| Sheave size | 70mm x 20mm |
