Barton Marine Size 5 Single Swivel Block - 54mm - Ball bearing - N15130
Click to enlarge
Code184567134258
MPN BAN15130
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

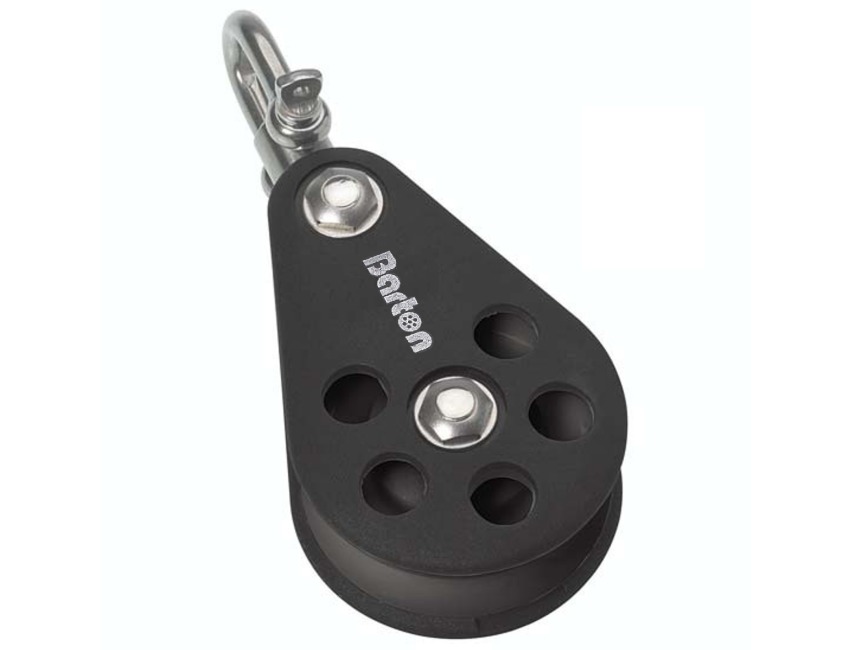

Barton Marine Size 5 Single Swivel Block
Part number: N15130
Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter center boss.
The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification
Metric (Imperial)
Sheave Size: 54mm x 17mm (2 1/8 × 5/8")
Maximum Rope Diameter 12mm (7/16")
Breaking Load 1500Kg (3300 lbs)
Safe Working Load: 525kg (1157lbs)
Length 130 mm
Weight 183 g
Specification List
| Type | Single Swivel Block | Manufacturer | Barton Marine |
|---|---|---|---|
| Sheave size | 54mm x 17mm (2 1/8 x 5/8") | Bearing type | Ball bearing |
