Barton Marine Size 5 Double Swivel Block 54mm - Plain bearing - N05230
Click to enlarge
Code164583103031
MPN BAN05230
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

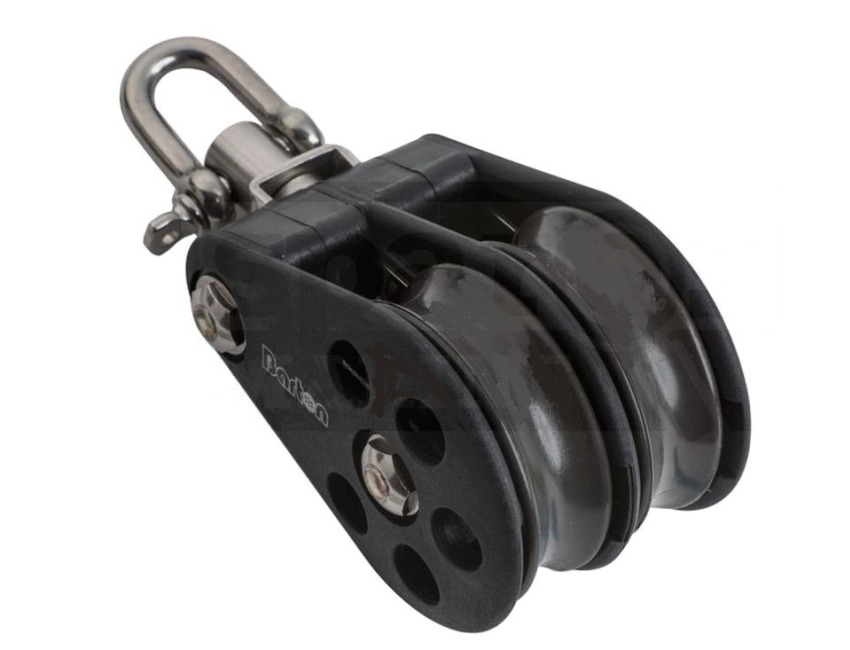

Barton Size 5 Plain Block Double swivel block
Part number: N05230
Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification
Metric (Imperial)
Sheave Size: Double 54mm x 17mm (2 1 /8 × 5/8")
Maximum Rope Diameter: 12mm ( 7 /16")
Breaking Load: 1500Kg (3300 lbs)
Safe Working Load: 750Kg (1650 lbs)
Length 130 mm
Weight 290 g
Specification List
| Type | Double swivel block | Manufacturer | Barton Marine |
|---|---|---|---|
| Sheave size | 54mm x 17mm (2 1 /8 x 5/8") |
