Barton Marine Size 5 Cruiser Block (Reverse shackle) - 54mm - Plain Bearing - N05120
Click to enlarge
Code155351663318
MPN BAN05120
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

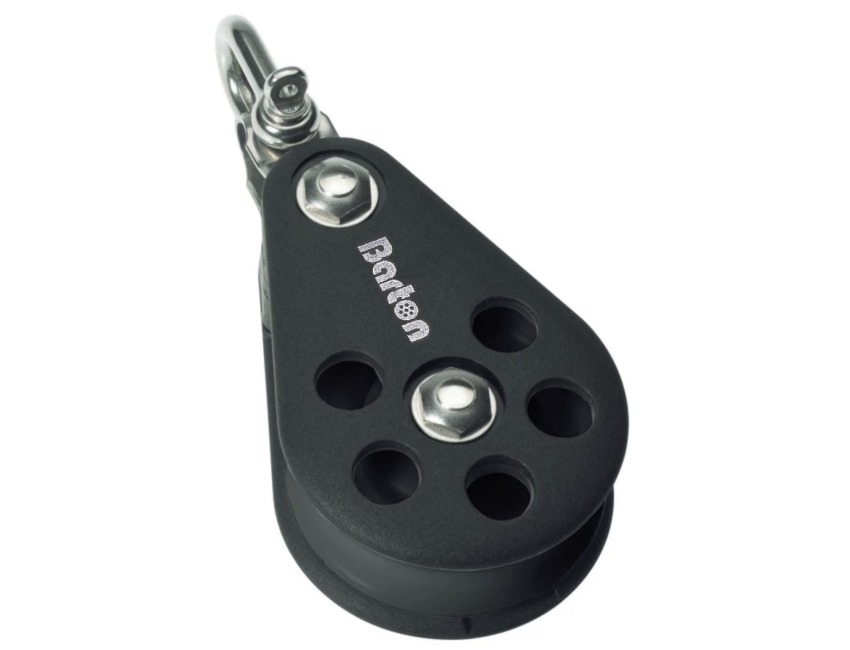

Barton Marine Size 5 Cruiser Block (Reverse shackle)
Part number: N05120
Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification
Metric (Imperial)
Sheave Size: 54mm x 17mm (2 1/8 × 5/8")
Maximum Rope Diameter 12mm (7/16")
Breaking Load: 1500Kg (3300 lbs)
Safe Working Load: 750Kg (1650 lbs)
Length 130 mm
Weight 161 g
Specification List
| Type | Single Reverse Shackle Block | Manufacturer | Barton Marine |
|---|---|---|---|
| Sheave size | 54mm x 17mm (2 1/8 x 5/8") | Bearing type | Plain bearing |
