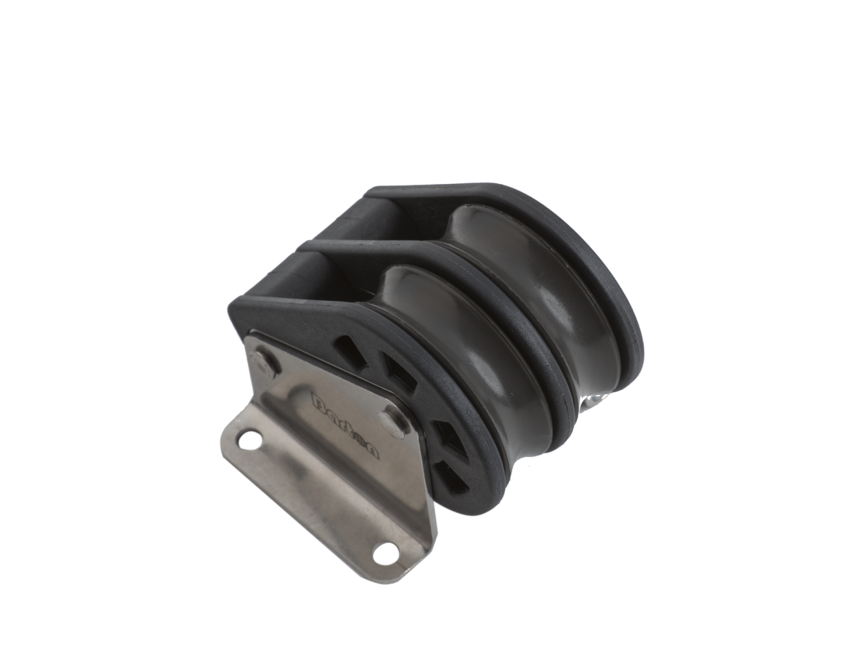

Barton Marine Size 2 Double Upright Block - 35mm - Plain bearing - N02250
Click to enlarge
Code185229077707
MPN BAN02250
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Barton Size 2 Double upright block
Part number: N02250
Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification
Metric (Imperial)
Sheave Size: 35mm x 12mm (1 3 /8 × 7/16")
Maximum Rope Diameter 8mm ( 5 /16")
Breaking Load 740Kg (1630 lbs)
Safe Working Load 370Kg (815 lbs)
Length 63 mm
Weight 110 g
Specification List
| Type | Double upright block | Manufacturer | Barton Marine |
|---|---|---|---|
| Sheave size | 35mm x 12mm (1 3 /8 x 7/16") |
