Barton Marine Size 1 Single Upright Block - 30mm - Plain bearing - N01150
Click to enlarge
Code185230608833
MPN BAN01150
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

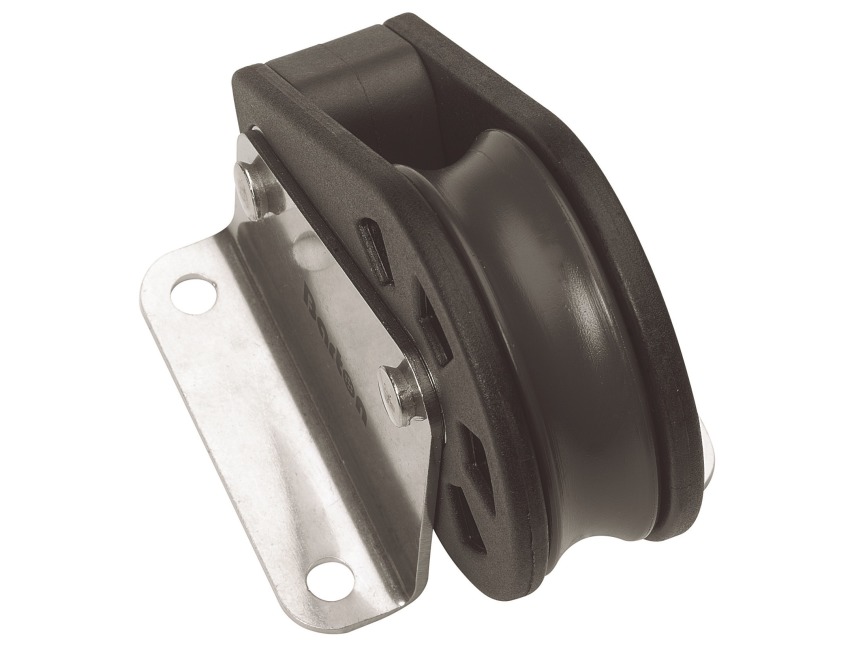

Barton Size 1 Plain single upright block
Part number: N01150
Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification
Metric (Imperial)
Sheave Size: 30mm x 12mm (1 3 /16 × 7/16")
Maximum Rope Diameter 8mm ( 5 /16")
Breaking Load 710Kg (1565 lbs)
Safe Working Load 355Kg (782 lbs)
Length 53 mm
Weight 64 g
Specification List
| Type | Lightweight lead block | Manufacturer | Barton Marine |
|---|---|---|---|
| Sheave size | 30mm x 12mm (1 3 /16 x 7/16") |
