Barton Marine Size 1 Double Swivel Block + becket 30mm - Plain bearing - N01231

Click to enlarge

Code1

MPN BAN01231

£31.75

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

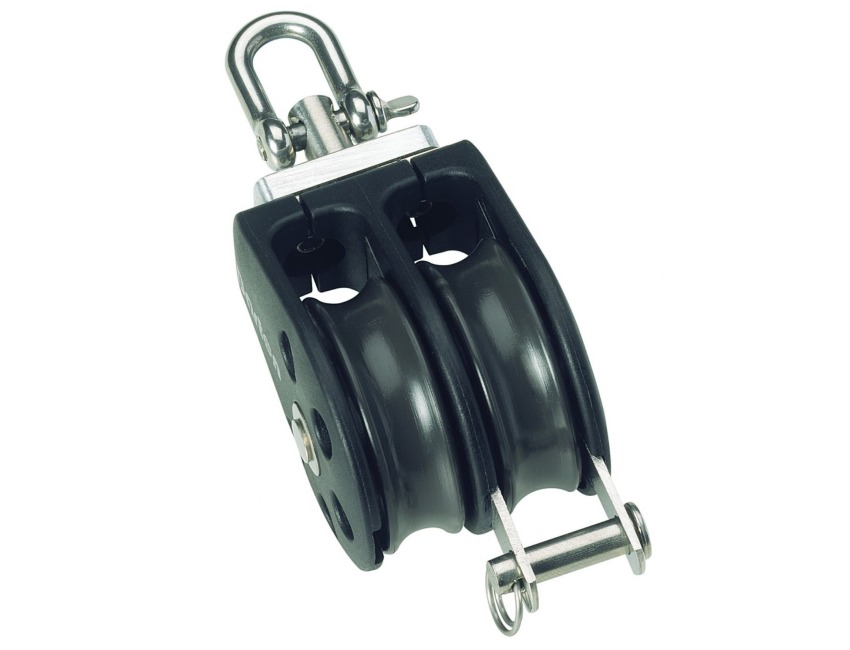

Barton Size 1 Double swivel block with becket

Part number: N01231

Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.

A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.

Specification
Metric (Imperial)
Sheave Size: 30mm x 12mm (1 3 /16 × 7/16")
Maximum Rope Diameter 8mm ( 5 /16")
Breaking Load 710Kg (1565 lbs)
Safe Working Load 355Kg (782 lbs)
Length 84 mm
Weight 75 g

Specification List

Type Double swivel block + becket Manufacturer Barton Marine
Sheave size 30mm x 12mm (1 3 /16 x 7/16")
