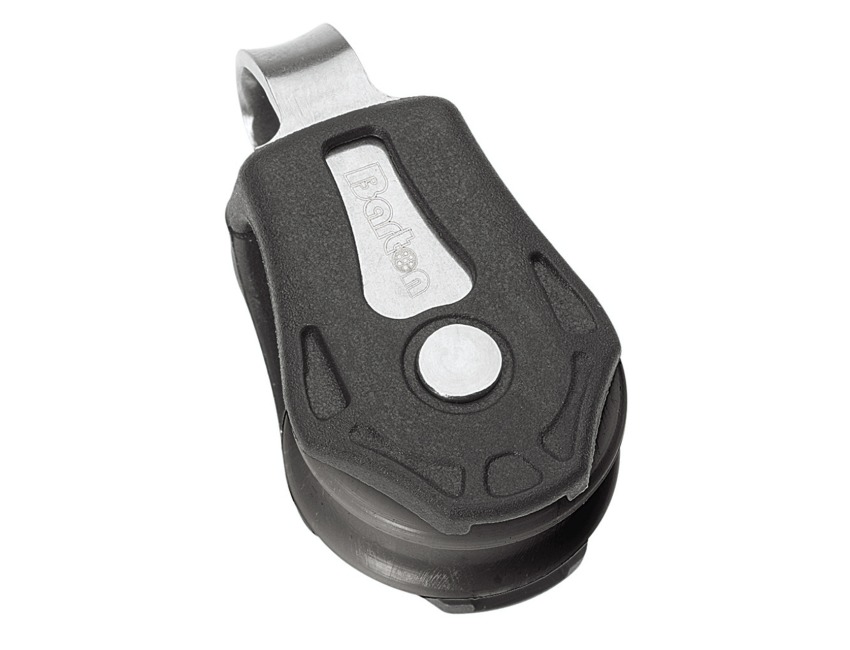

Barton Marine Size 0 Single Fixed Eye Block - 20mm - Plain bearing - N00110

Click to enlarge

Code164869005744

MPN BAN00110

£6.71

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Barton Size 0 Plain Block Single Fixed Eye
Part number: N00110

Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.

Fixed Eye - Has a plain eye attachment.

A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.

Specification
Metric (Imperial)
Sheave Size: 20mm x 8mm (25/32 × 5/16")
Maximum Rope Diameter 5mm (3/16")
Breaking Load 550Kg (1210 lbs)
Safe Working Load 275kg (606lbs)
Length 39.1 mm
Weight 13 g

Specification List

Type Single block Manufacturer Barton Marine
Sheave size 20mm x 8mm (1 3 /16 x 7/16")
