Barton Marine Size 0 Single Cheek Block - 20mm - Plain bearing - N00160
Click to enlarge
Code184353301550
MPN BAN00160
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

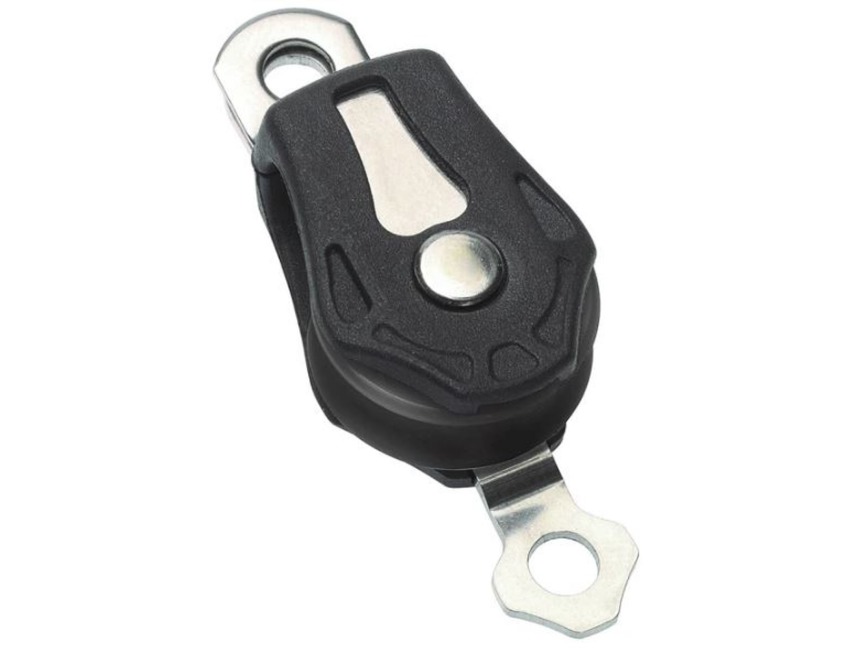

Barton Size 0 Plain Single Cheek Block
Part number: N00160
Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification
Metric (Imperial)
Sheave Size: 20mm x 8mm (25/32 × 5/16")
Maximum Rope Diameter 5mm (3/16")
Breaking Load 550Kg (1210 lbs)
Safe Working Load 275kg (606lbs)
Mounting holes: 5mm
Distance between hole centers: 43mm
Length 55 mm
Weight 17 g
Specification List
| Type | Single Cheek Block | Manufacturer | Barton Marine |
|---|---|---|---|
| Sheave size | 20mm x 8mm (1 3 /16 x 7/16") |
