Barton Marine - Rope Clutch - Max 10mm Rope - 80 500

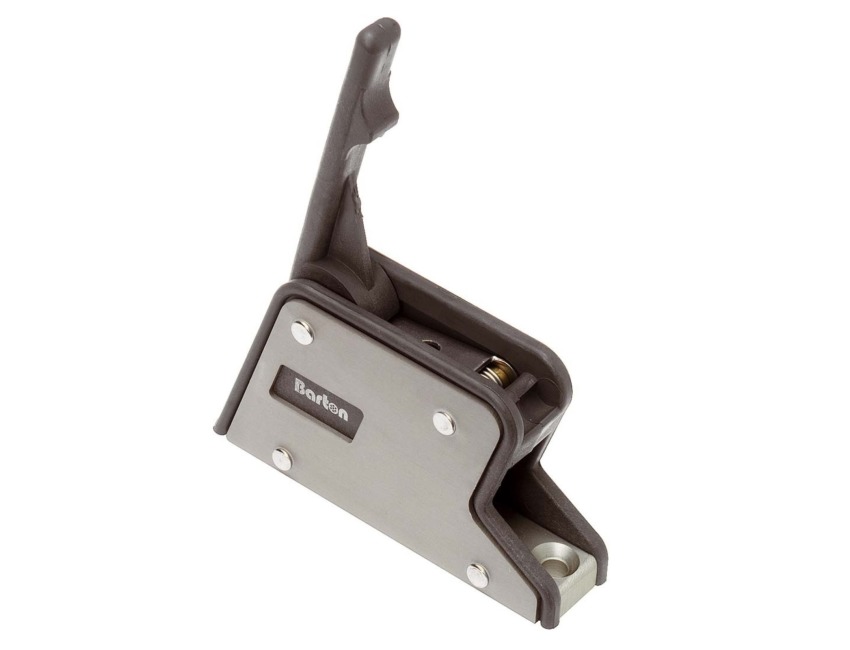

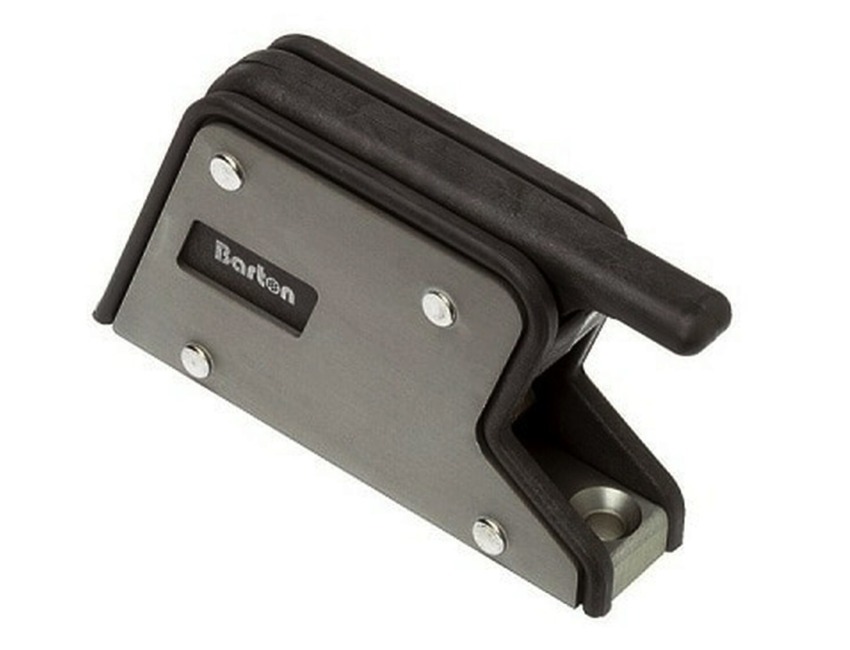

10mm Rope Clutch

Part number: 80 500

Manufactured from high grade plastics and aluminium with 'Spectro' grey annodised finish.

Lines can be drawn through the clutch in the locked position as the line moves freely in the direction of pull and is restricted from returning by a spring-loaded cam.

For use on yachts up to 30' for securing halyards and control lines.

Lighter duties on larger boats.

Available in single, double and triple versions. (This listing is for the single)

Sizes:

Single:

Length: 107mm
Width: 28mm
Height: 62mm
Weight: 250gr
Max loading capacity: 350kg
Hole centres: 88mm
Max rope capacity: 10mm
