Barton Marine - 'K' Cam Cleat Maxi - 70 300

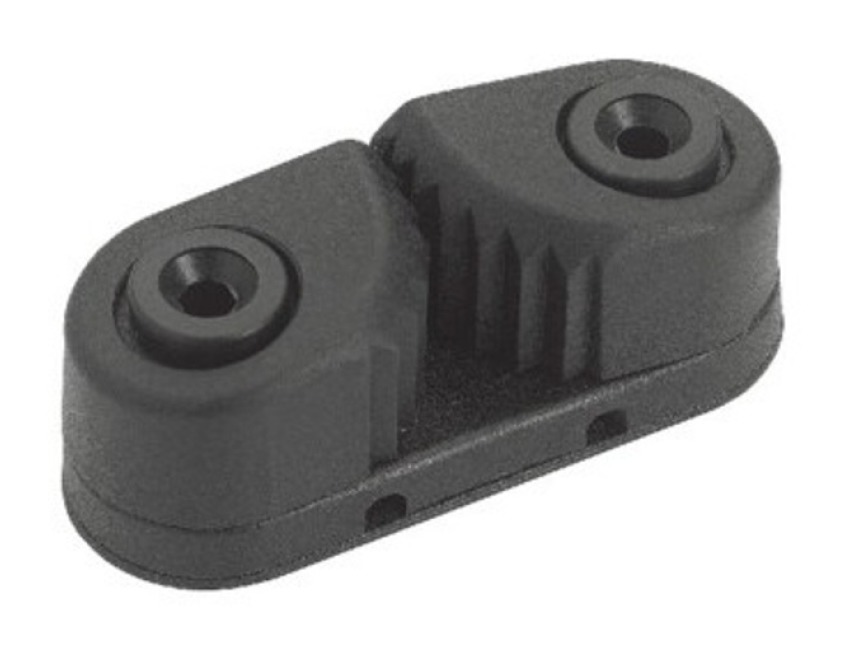

Barton Marine - 'K' Cam Cleat Maxi

Part number: BA70300

Superseded from: BA70601, 70601

Manufactured from Dupont Kevlar/Zytal, K Cams are available in 3 sizes to accept lines up to 14mm (9/16”) in diameter.
This advanced material offers performance advantages over carbon fibre and conventional glass-reinforced resins.
'K' cams are very strong, lightweight and have excellent wearresistance.
A progressive tooth design ensures maximum holding power on all types of line, whilst maintaining minimum wear to both cam and line.
'K' Cam bases feature a stainless steel wear bar for prolonged life.
The cams utilise stainless steel leaf springs which give a smooth but positive action and a longer life span than conventional wire springs.
'K' cam cleats are available with a range of accessories to include: Pillar fairleads, Wire fairleads and Top fairleads

#70100 - ‘K’ Cam Mini Holding power 190kg (420lbs), maximum line 10mm (3/8”), hole centres 30mm (1 3/16), weight 17g (0.6oz)

#70200 - ‘K’ Cam Midi Holding power 230kg (508lbs), maximum line 12mm(1/2”) line, hole centres 40mm (1 9/16”), weight 34g (1.2oz)

#70300 - ‘K’ Cam Maxi Holding power 260kg (570lbs), maximum line 14mm (9/16”), hole centres 50mm(2”) , weight 50g (1.8oz)
