Barton - Triple - Swivel - Plain Bearing Block S1 - N01330
Click to enlarge
Codex
MPN BAN01330
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

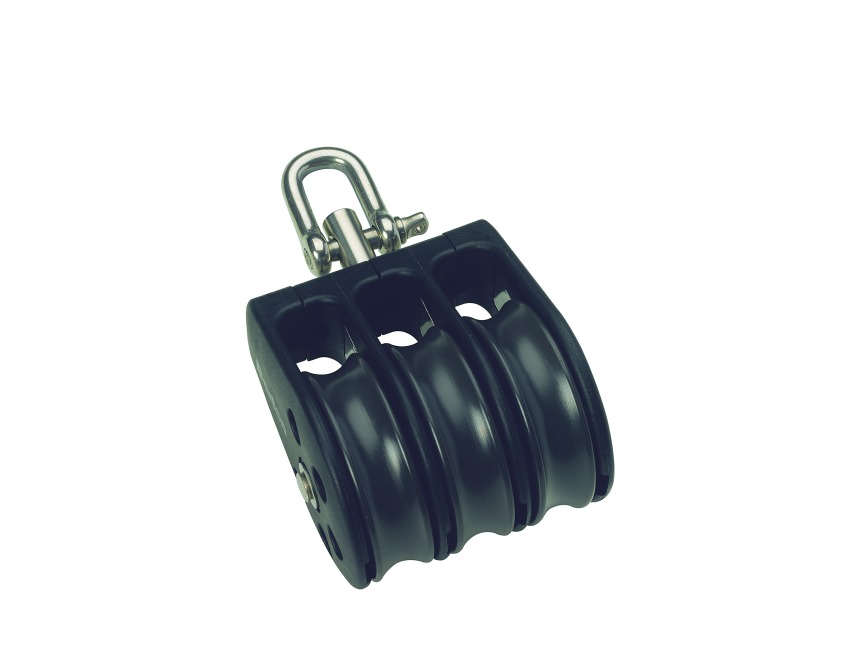

Barton Size 1 Plain Bearing Block Triple - swivel
Part No: N01330
Plain Bearing Blocks - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: 30mm x 12mm (1 3 /16 x 7/16")
Maximum Rope Diameter: 8mm ( 5 /16")
Breaking Load: 710Kg (1565 lbs)
Safe Working Load: 355Kg (782 lbs)
Length: 73mm
Weight: 89g
Specification List
| Type | Block | Sub-Type | Plain Bearing Block |
|---|---|---|---|
| Weight | 89g | Country of Origin | GB |
| Tariff Code | 84835080 |
