Description

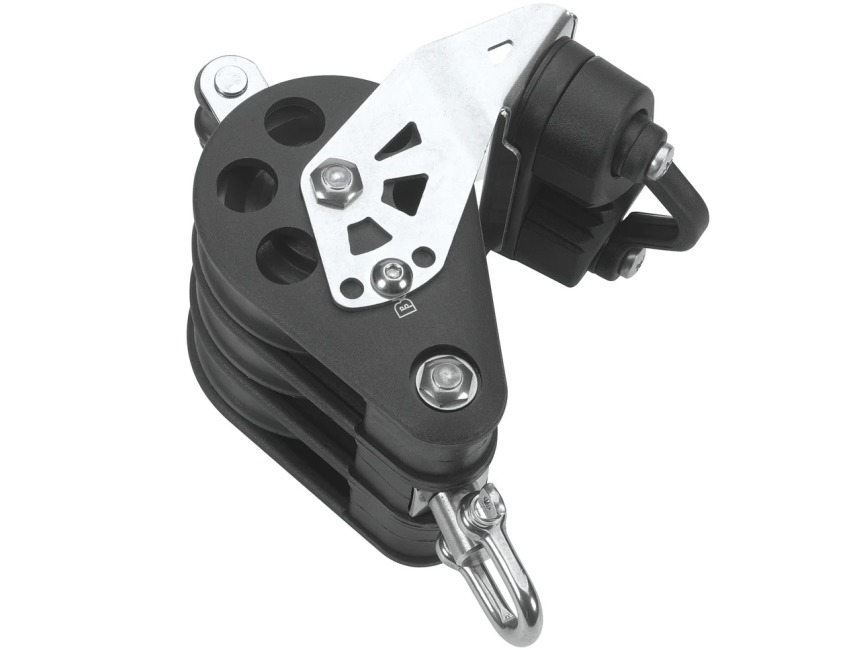

Barton S5 Ball Bearing Block Triple - Swivel + Becket + Cam
Part No: N15931
Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter centre boss.
The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Single 54mm x 17mm (2 1 /8 x 5/8")
Maximum Rope Diameter: 12mm ( 7 /16")
Breaking Load: 1500Kg (3300 lbs)
Safe Working Load: 750Kg (1650 lbs)
Length: 173mm
Weight: 668g
Specification List
| Type | Block | Sub-Type | Ball Bearing Block |
|---|---|---|---|
| Weight | 668g | Country of Origin | GB |
| Tariff Code | 84835080 |
