Barton - Triple - Swivel + Becket - Ball Bearing Block S2 - N12331
Click to enlarge
Codex
MPN BAN12331
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

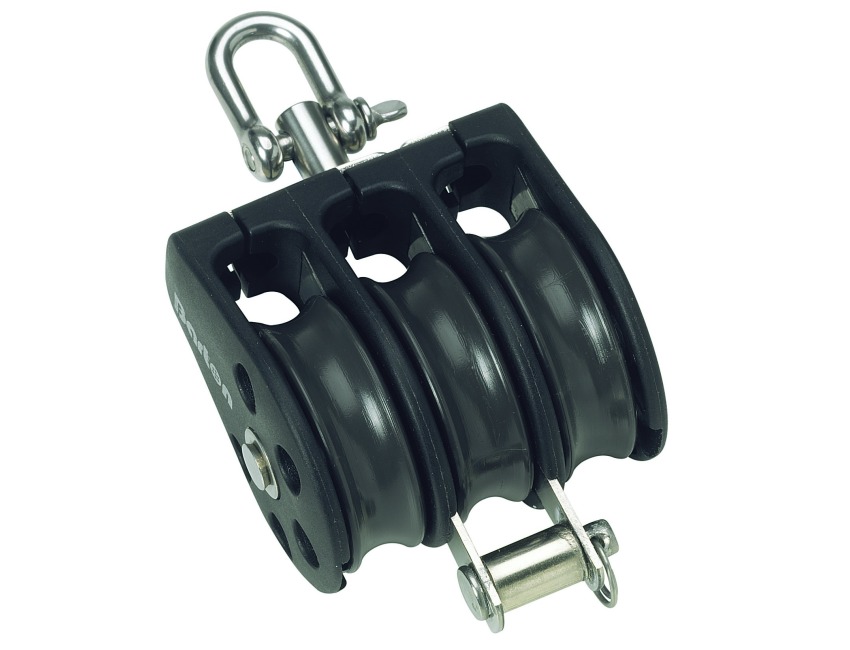

Barton S2 Ball Bearing Block Triple - Swivel + Becket
Part No: N12331
Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter centre boss.
The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Single 35mm x 12mm (1 3 /8 × 7/16")
Maximum Rope Diameter: 8mm ( 5 /16")
Breaking Load: 740Kg (1630 lbs)
Safe Working Load: 370Kg (815 lbs)
Length: 91mm
Weight: 113g
Specification List
| Type | Block | Sub-Type | Ball Bearing Block |
|---|---|---|---|
| Weight | 113g | Country of Origin | GB |
| Tariff Code | 84835080 |
