Barton - Snatch Block / D-shackle - 90402
Click to enlarge
Code: 157730450148
MPN: 90402
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

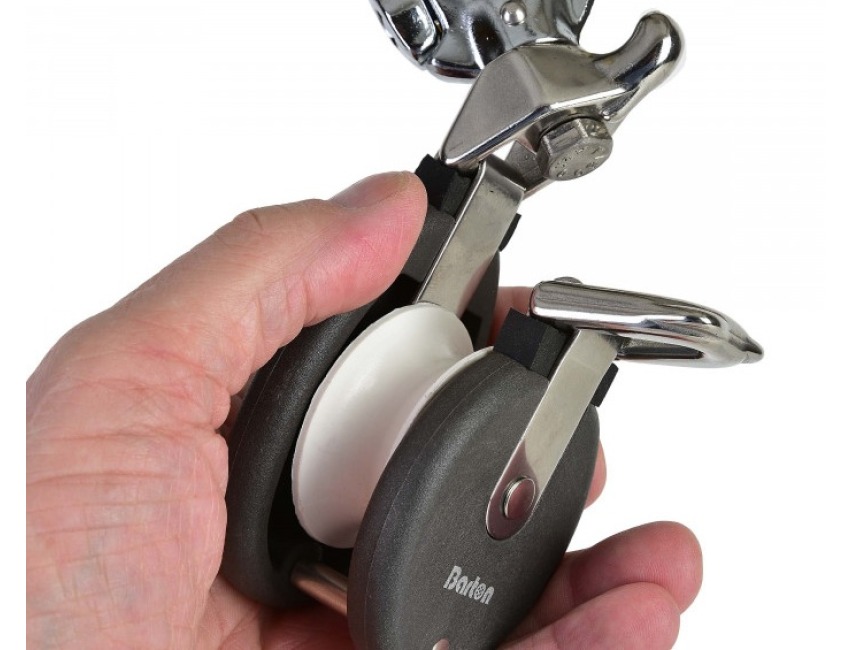

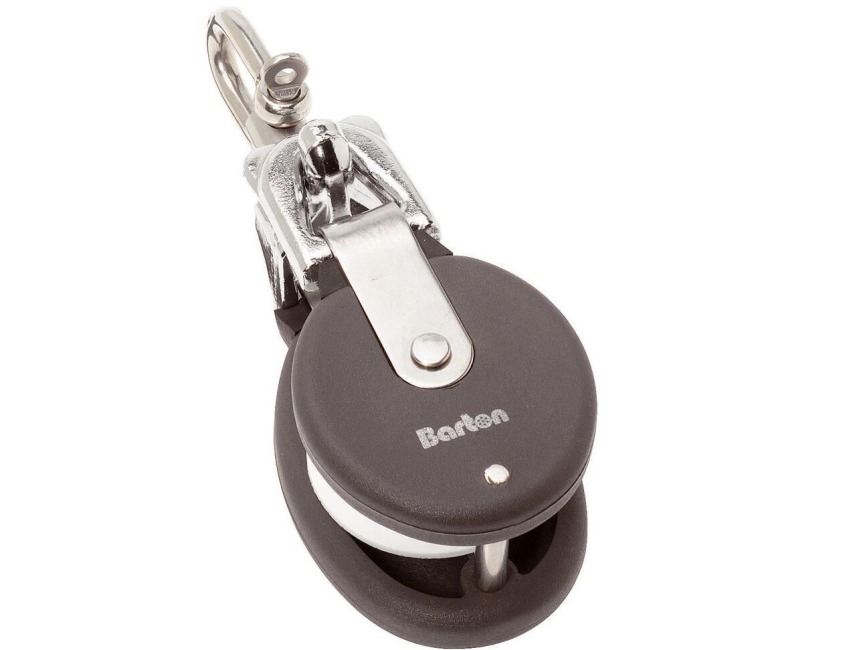

90402 - Large Snatch Block suitable for yachts up to 12.2m (40ft)
Manufactured using 316 stainless steel.
Comes with a stainless steel ‘D’ Shackle for ultimate strength.
These are used to divert sheet lines already in use, typically the Spinnaker or Genoa where a change of sheeting angle is required.
Important note - Snatch Blocks: When using Snatch Blocks on a toe rail, a bungee line should be attached to the becket to prevent the block 'tumbling' and causing damage by snagging.
Weight 298 g
Dimensions 144 × 56 × 50 mm
Size 48MM
Block Type Shackle
No. of Sheaves Single
Bearing Type Plain
Sheave Size 48mm x 20mm (1 7/8" × 3/4")
Max rope diameter 16mm (5/8")
SWL 650kg (1433lbs)
Break load 1300kg (2866lbs)
Specification List
| Type | Snatch Block | Weight (Kg) | 0.298 |
|---|
