Barton - Single - Variloc - Plain Bearing Block S6 - N06180
Click to enlarge
Codex
MPN BAN06180
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

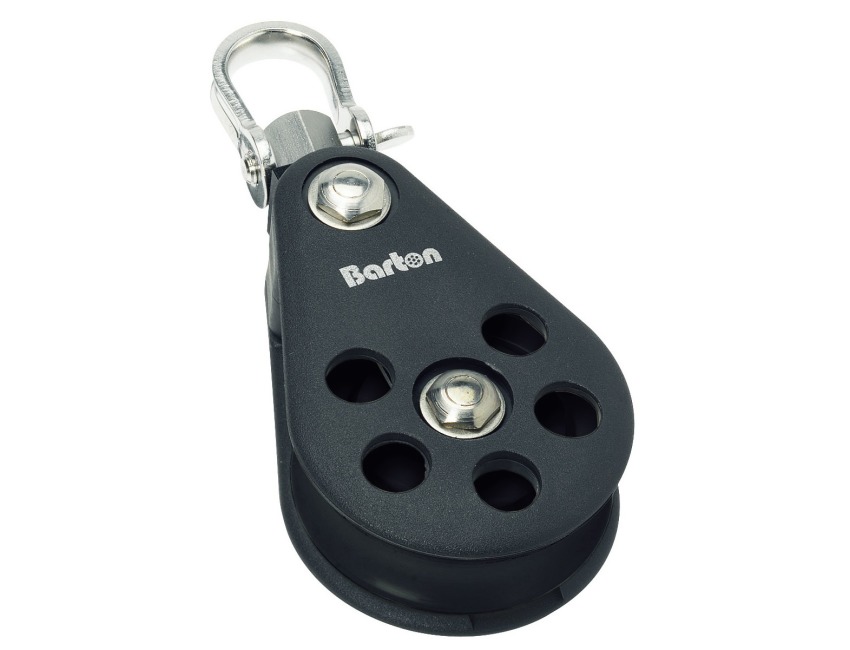

Barton S6 Plain Bearing Block Single - Variloc
Part No: N06180
The Variloc Multi Head allows swivel to be locked at 30 degree positions in relation to sheave. Inverting the lock converts to swivel mode. Supplied with screw pin shackle.
Plain Bearing Blocks - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Single 64mm x 17mm (2 1 /2 x 5/8")
Maximum Rope Diameter: 12mm ( 7 /16")
Breaking Load: 2000Kg (4400 lbs)
Safe Working Load: 1000Kg (2200 lbs)
Length: 138mm
Weight: 228g
Specification List
| Type | Block | Sub-Type | Plain Bearing Block |
|---|---|---|---|
| Weight | 228g | Country of Origin | GB |
| Tariff Code | 84835080 |
