Barton - Single - Variloc + Becket - Plain Bearing Block S5 - N05181
Click to enlarge
Codex
MPN BAN05181
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

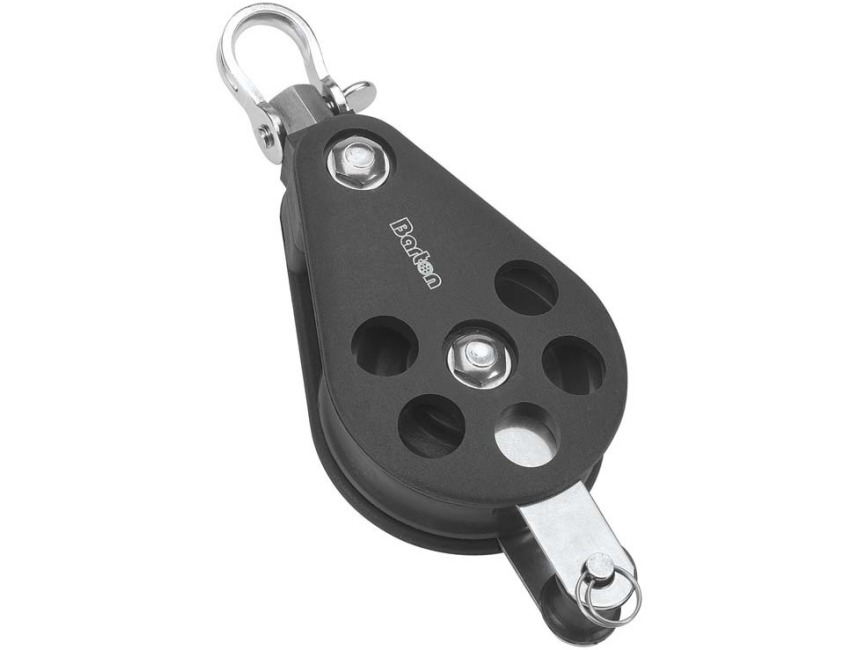

Barton S5 Plain Bearing Block Single - Variloc + Becket
Part No: N05181
The Variloc Multi Head allows swivel to be locked at 30 degree positions in relation to sheave. Inverting the lock converts to swivel mode. Supplied with screw pin shackle.
Plain Bearing Blocks - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Single 54mm x 17mm (2 1 /8 x 5/8")
Maximum Rope Diameter: 12mm ( 7 /16")
Breaking Load: 1500Kg (3300 lbs)
Safe Working Load: 750Kg (1650 lbs)
Length: 148mm
Weight: 218g
Specification List
| Type | Block | Sub-Type | Plain Bearing Block |
|---|---|---|---|
| Weight | 218g | Country of Origin | GB |
| Tariff Code | 84835080 |
