Barton - Single - Swivel (No shackle) - Plain Bearing Block Size 0 - N00190
Click to enlarge
Codex
MPN BAN00190
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

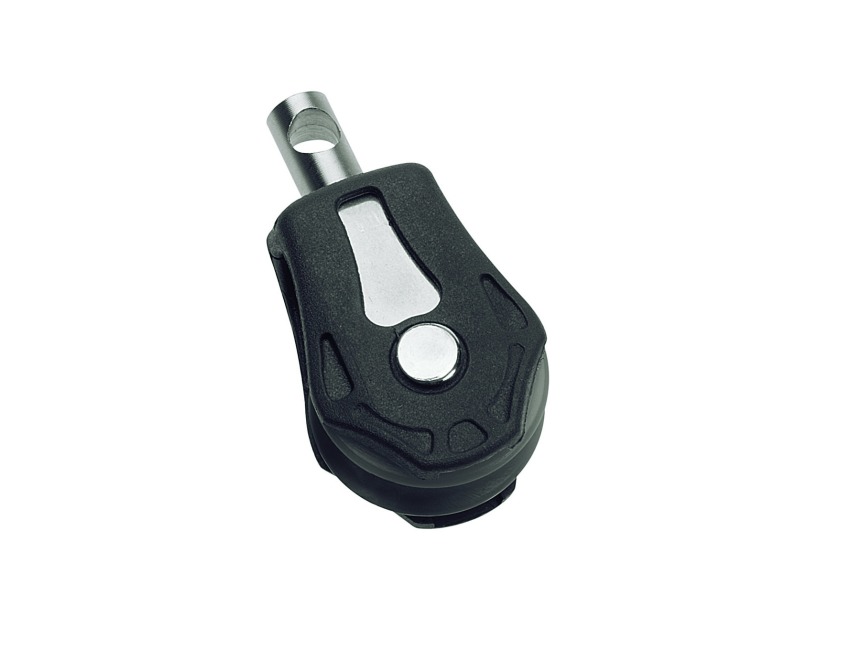

Barton Size 0 Plain Bearing Block Single - swivel (without shackle)
Part No: N00190
Plain Bearing Block - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: 20mm x 8mm (25/32 × 5/16")
Maximum Rope Diameter: 5mm (3/16")
Breaking Load: 550Kg (1210 lbs)
Safe Working Load: 275kg (606lbs)
Length: 39.6
Weight: 16
Specification List
| Type | Block | Sub-Type | Plain Bearing Block |
|---|---|---|---|
| Weight | 16g | Country of Origin | GB |
| Tariff Code | 84835080 |
