Description

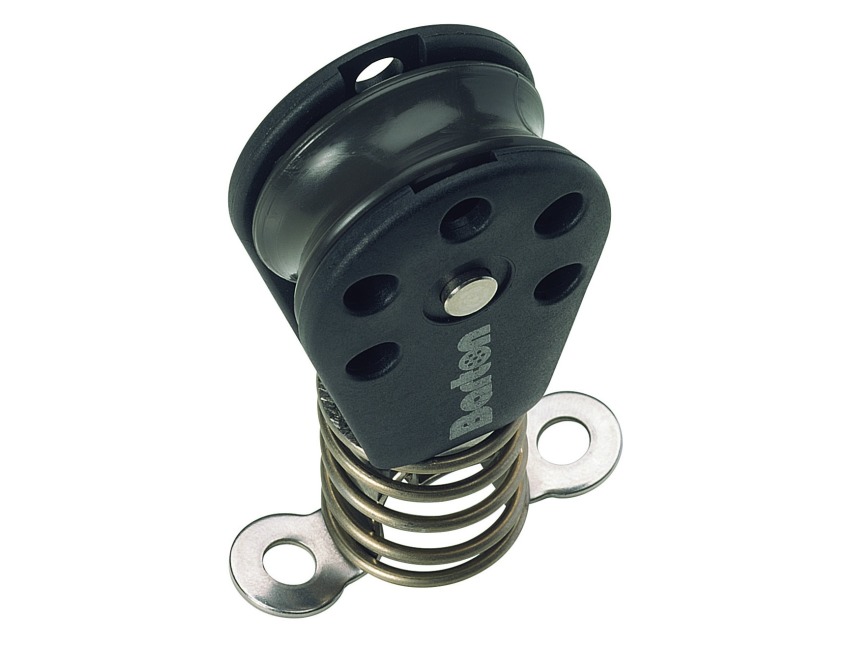

Barton S1 Ball Bearing Block Single - stand up block
Part No: N11170
Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter centre boss.
The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: 30mm x 12mm (1 3 /16 x 7/16")
Maximum Rope Diameter: 8mm ( 5 /16")
Breaking Load: 710Kg (1565 lbs)
Safe Working Load: 245Kg (539 lbs)
Length: 64mm
Weight: 58g
Specification List
| Type | Block | Sub-Type | Ball Bearing Block |
|---|---|---|---|
| Weight | 58g | Country of Origin | GB |
| Tariff Code | 84835080 |
