Barton - Single - Fixed Eye Clevis Pin - Plain Bearing Block S3 - N03090

Click to enlarge

Codex

MPN BAN03090

Was £14.35
Now: £13.67

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

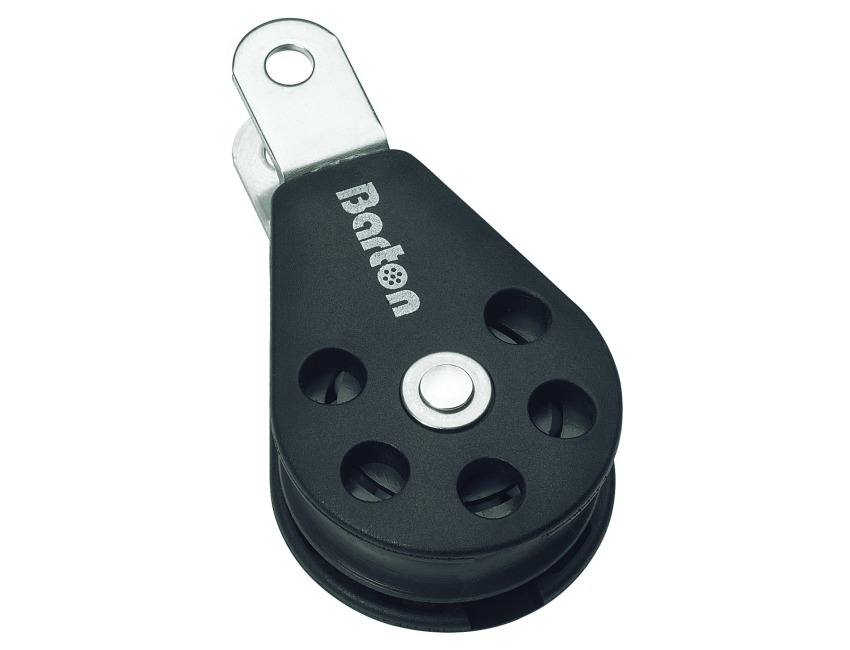

Barton S3 Plain Bearing Block Single - Fixed Eye Clevis Pin

Part No: N03090

Plain Bearing Blocks - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.

A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.

Specification:
Metric (Imperial)
Sheave Size: Single 45mm x 13mm (1 3 /4 x 1/2")
Maximum Rope Diameter: 10mm ( 3 /8")
Breaking Load: 800Kg (1763 lbs)
Safe Working Load: 400Kg (881 lbs)
Length: 80mm
Weight: 66g

Specification List

Type Block Sub-Type Plain Bearing Block
Weight 66g Country of Origin GB
Tariff Code 84835081
