Barton - Fiddle - Swivel - Ball Bearing Block S7 - N17430
Codex
MPN BAN17430
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

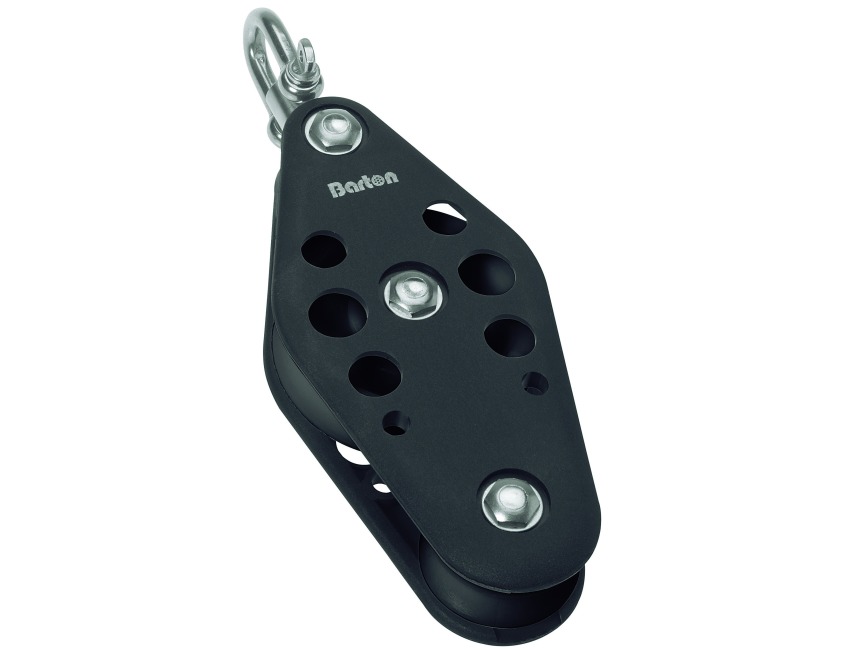

Barton S7 Ball Bearing Block Fiddle - Swivel
Part No: N17430
Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter centre boss.
The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Fiddle 44/70mm x 17mm (1 3 /4 x 2 1/4" x 5/8")
Maximum Rope Diameter: 14mm ( 9 /16")
Breaking Load: 2500Kg (5500 lbs)
Max Rolling Load: 1250Kg (2750 lbs)
Length: 220mm
Weight: 406g
Specification List
Type | Block | Sub-Type | Ball Bearing Block |
---|---|---|---|
Weight | 406g | Country of Origin | GB |
Tariff Code | 84835080 |
