Description

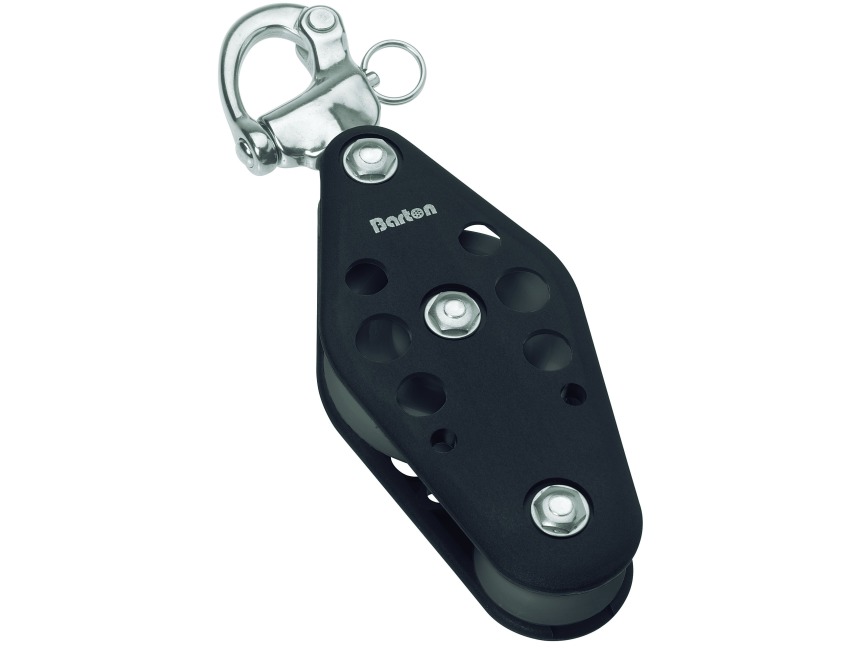

Barton S6 Plain Bearing Block Fiddle - Snap Shackle
Part No: N06440
Plain Bearing Blocks - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Fiddle 44/70mm x 17mm (1 3 /4 x 2 3/4" x 5/8")
Maximum Rope Diameter: 12mm ( 7 /16")
Breaking Load: 2000Kg (4400 lbs)
Safe Working Load: 1000Kg (2200 lbs)
Length: 220mm
Weight: 417g
Specification List
| Type | Block | Sub-Type | Plain Bearing Block |
|---|---|---|---|
| Weight | 417g | Country of Origin | GB |
| Tariff Code | 84835080 |
