Description

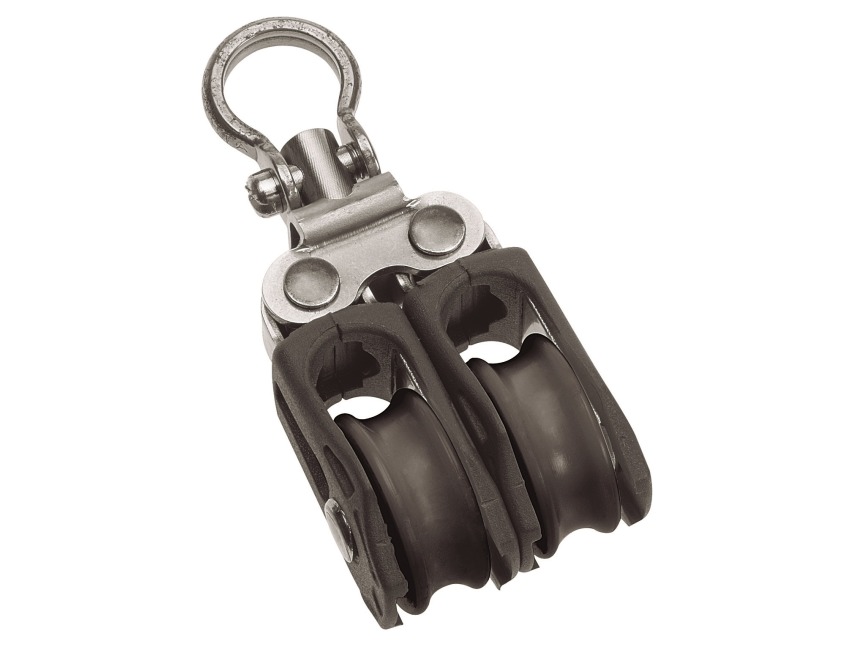

Barton Size 0 Ball Bearing Block Double - swivel
Part No: N10230
Barton Ball Bearing Blocks feature a unique super-low friction ball race system, comprising acetal sheaves and delrin ball bearings running on a large diameter centre boss.The Barton ball bearing design fits in more load-bearing balls, and consequently promotes extremely low friction performance, even under high loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: 20mm x 8mm (25/32 × 5/16")
Maximum Rope Diameter: 5mm (3/16")
Breaking Load: 550Kg (1210 lbs)
Safe Working Load: 275kg (606lbs)
Length: 65.8mm
Weight: 38g
Specification List
| Type | Block | Sub-Type | Ball Bearing Block |
|---|---|---|---|
| Weight | 38g | Country of Origin | GB |
| Tariff Code | 84835080 |
