Barton - Double - Reverse Shackle - Plain Bearing Block S7 - N07220
Click to enlarge
Codex
MPN BAN07220
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

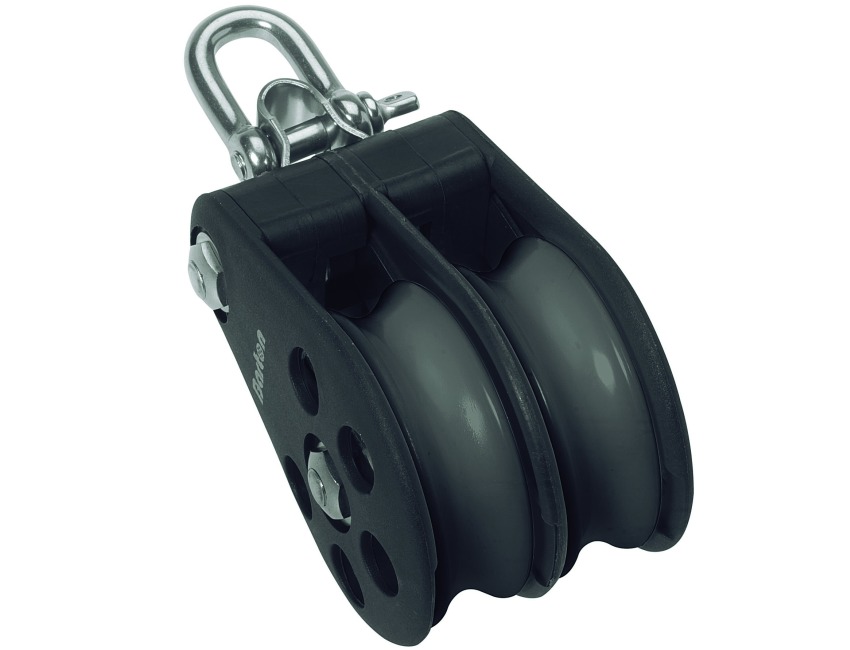

Barton S7 Plain Bearing Block Double - Reverse Shackle
Part No: N07220
Plain Bearing Blocks - Have a precision moulded Acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.
A comprehensive range of camcleat, fiddle and fiddle & camcleat versions are available.
Specification:
Metric (Imperial)
Sheave Size: Single 70mm x 20mm (2 3 /4 x 3/4")
Maximum Rope Diameter: 14mm ( 9 /16")
Breaking Load: 2500Kg (5500 lbs)
Max Rolling Load: 1250Kg (2750 lbs)
Length: 160mm
Weight: 461g
Specification List
| Type | Block | Sub-Type | Plain Bearing Block |
|---|---|---|---|
| Weight | 461g | Country of Origin | GB |
| Tariff Code | 84835080 |
