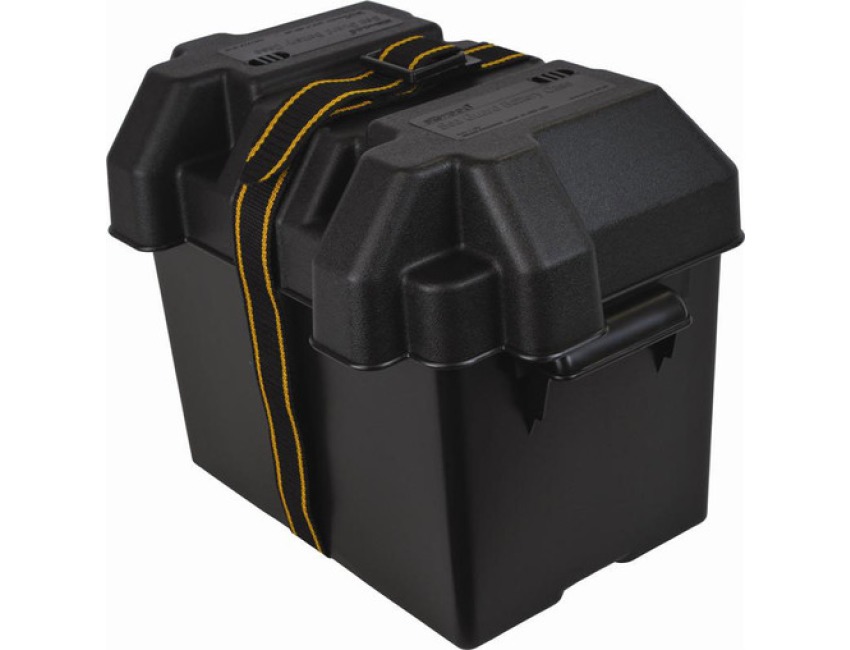

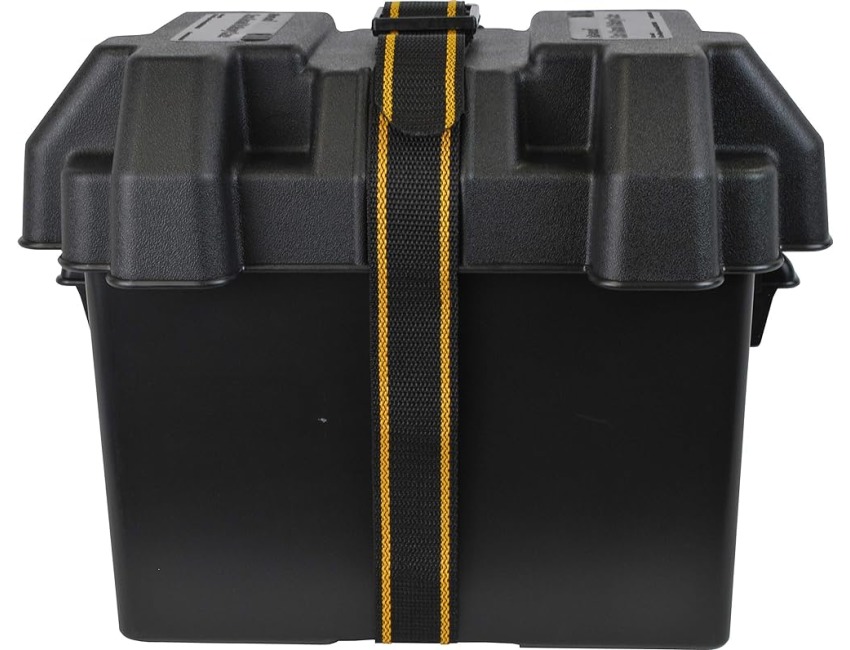

attwood - BOX BATTERY BLACK 24M VENTED - 9065-1

attwood - Battery Box - BLACK 24M VENTED

Part No: 9065-1

Attwood Standard Vented Battery Box for standard size, Series 24 batteries (257mm maximum height).

Battery boxes meet ABYC Standard E-10 and U.S. Coast Guard Specification Number 183.420 as an OEM-installed battery hold-down system.

Hold-down straps resist 159 Kg of force, nearly four times the USCG requirement.

Polypropylene construction for total acid resistance. Battery Boxes are drop tested in temperatures ranging from -28°C to +48°C.

Features:

Mounting hardware included.
Larger handles with rolled edges
4 cable openings, enlarged to 14mm diameter
Instructions molded inside cover

Dimensions:

Inside -
L 28.2 cm x W 19.6 cm x H 25.7 cm

Outside -
L 35.6 cm x W 24.5 cm x H 27 cm
