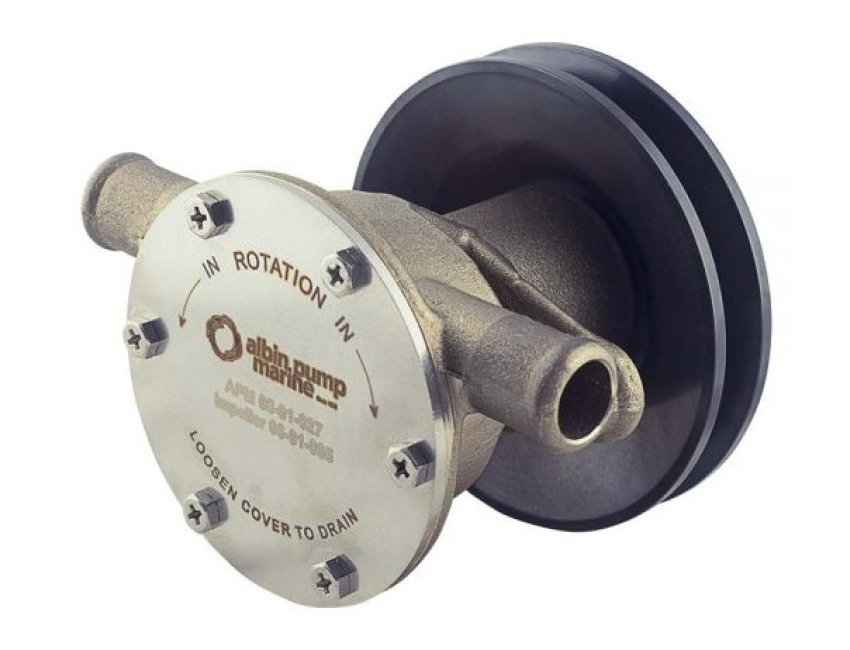

Albin Sea Water Pump - YANMAR 2GM20F-YEU / 3GM30F-YEU - 05-01-027 - Replaces 128397-42500

Albin Marine Replacement Yanmar Engine Cooling Raw Water / Seawater Pump

Part number: JPR-YM08IH / 05-01-027
(Replacement Pump for Yanmar 128397-42500) & Steel Pulley
Fits:
INDIRECT COOLED Engines: 2GM20F-YEU, 3GM30F-YEU - Serial number starts with 'E'
and early
2YM15, 3YM20, 3YM30

It is very important to order the correct pump for your model of engine by referring to the cross-reference information provided.

Product Information & Specs:
Uses Yanmar Impeller p/n: 128990-42570 or JMP Impeller p/n: 7050-01K
Port Size (Inside Diameter): 1/2" Hose
Port Size (Outside Diameter): Approx 3/4" Hose
Pump Size (LxWxH): 91mm x 114mm x 76mm
Pump Weight (approx): 4.0 lbs (1.82 kgs)

Replaces Genuine Yanmar Water Pump p/n(s): 128397-42500, 128990-42500
Replaces Johnson Pump p/n(s): 10-24509-01, 10-13337-01, F4B-903

Engine Model(s):
2GM20F-YEU, 3GM30F-YEU, 2YM15, 3YM20 (old type), 3YM30 (old type)

Parts Internally Compatible to Genuine: NO
Internal changes made to pump: Mechanical Seal, Ball Bearing, Shaft, Machined Steel Pulley (Washer & Nut Included)

Major Service Kit (All Internal Parts): JSK0082 (*Sold Separately)
Minor Service Kit: JSM0091 (*Sold Separately)

Product Features:
Plug & Play Replacement
Simple & Compact Design (Less Parts)
Strong Bronze Body (Heavy Duty Marine Grade Casting)
High Performance and Long Life Flexible Impellers
Marine Grade Shaft (3X Series Non-Magnetic)
Mechanical Seal instead of Lip Seal
Heavy Duty Machined Steel Pulley
Cam-Less Design / Cam is machined in the Body Casing
