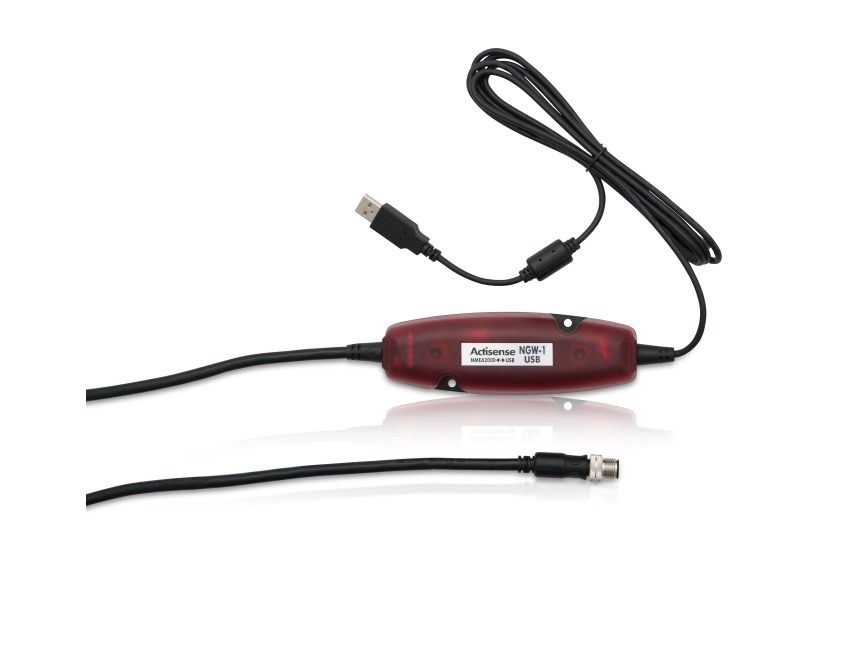

Actisense NGW-1-USB - NMEA 2000 / USB Gateway (PC running 0183 chart software)

Click to enlarge

Code155265755811

MPN NGW-1-USB

£195.90

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

The Actisense NGW-1 NMEA 2000 Gateway is the easiest way to link between a boats old and new data networks.

The NGW-1 can convert NMEA 0183 data into NMEA 2000 data and vice-versa.

NGW-1-USB: NMEA 0183 chartplotter option - full USB (1.1 & 2.0) interface for bi-directional connection to a PC.

Normally for use with existing NMEA 0183 PC chartplotter software or similar.

Full galvanic Opto-isolation is provided for superior protection of PC.
Thus full isolation is maintained between the NMEA 0183 input / output and the NMEA 2000 CAN bus.

The NGW-1 is compatible with Raymarine's SeaTalkNG to NMEA 2000 adaptor Cable - (STNG-A06045).

The Actisense NMEA Reader software utility allows the NGW-1 user to view and understand (in detail) the translated NMEA 0183 sentences output by an NGW-1 directly.

Specification List

Type NMEA 2000 Interfaces & data acquisition
