YAMAHA F4A, 4A, 4B, 5C Outboard Lower Gear Case Unit Seal Kit - 6E0-W0001-C1
Click to enlarge
Code151915878926
MPN 6E0-W0001-C1-00
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Genuine Yamaha F4A / 4A / 4B / 5C Lower Gear case Seal Kit
Part Number: 6E0-W0001-C1
FITS:
Four Stroke: F4A 98 to 09 Two Stroke: 4A 96 on 4B 03 5C 96 on.

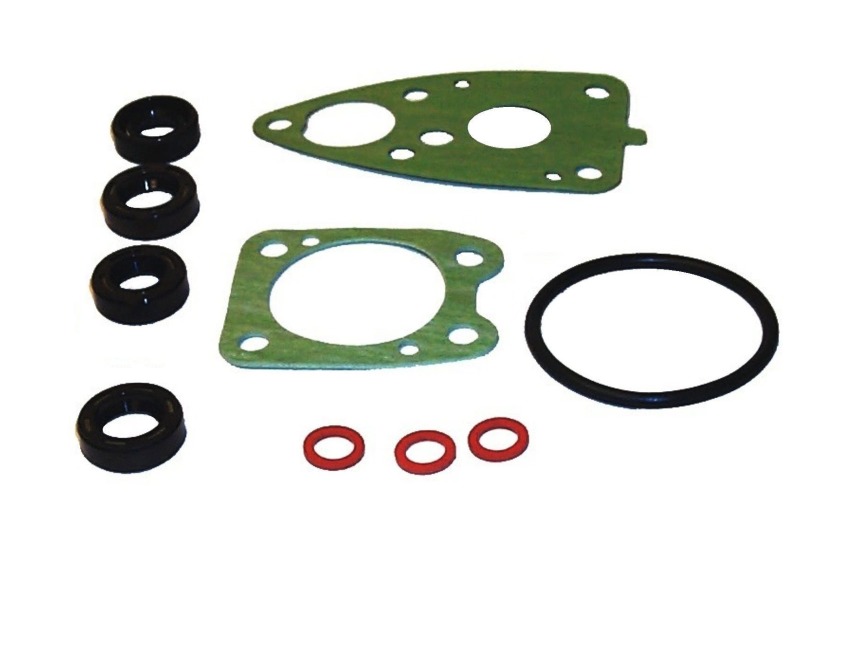

Every Oil seal, gasket and 'o' ring required to strip clean and reassemble your gearbox.

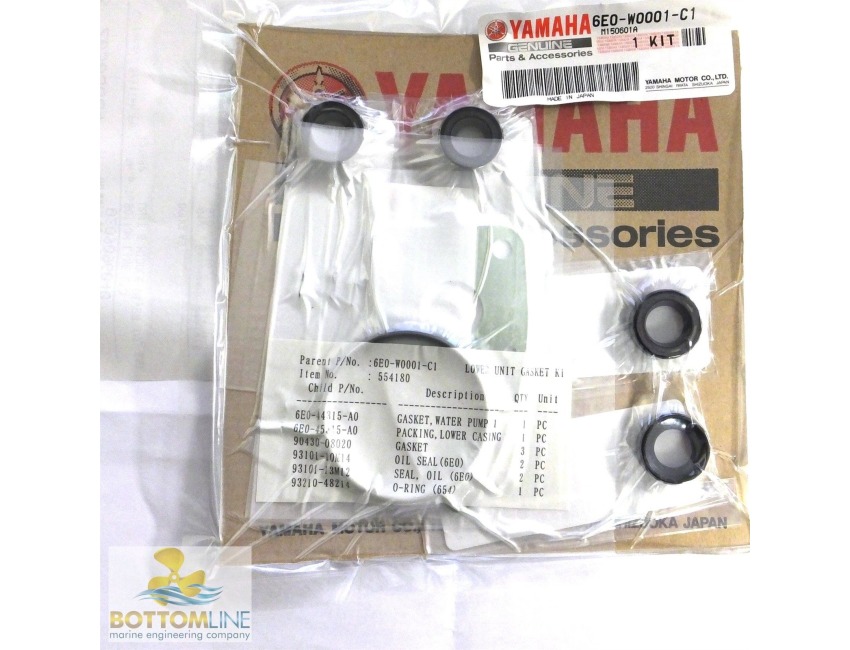

All the items are Genuine Yamaha parts and the kit contains the following:

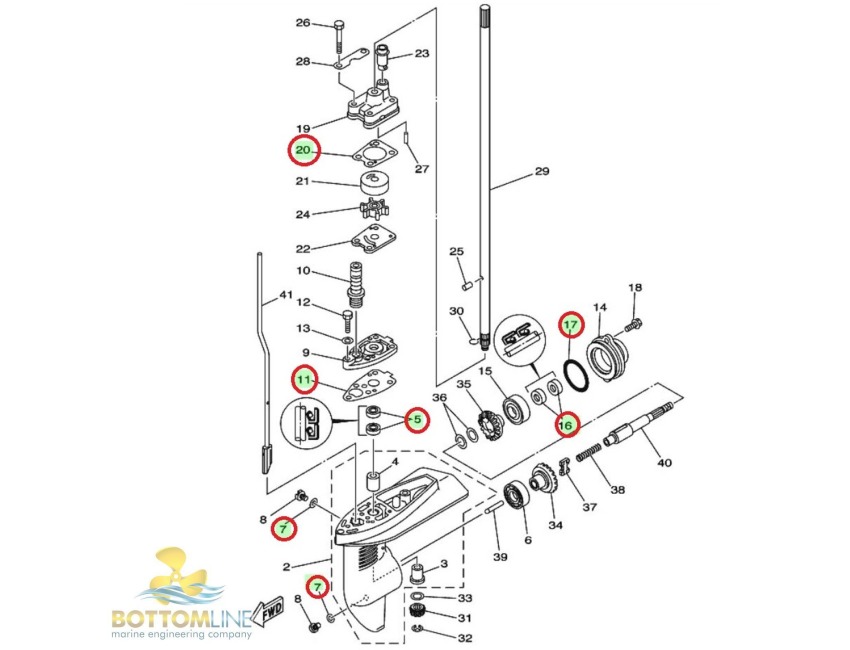

1 × 6E0-44315-A0 Water Pump Gasket (No: 20 on diagram)
1 × 6E0-45315-A0 Packing Gasket (No: 11 on diagram)
3 × 90430-08020 Gasket (No: 7 on diagram)
2 × 93101-10811 / 93101-10M14 Oil Seal(No: 5 on diagram)
2 × 93101-13800 / 93101-13M12 Oil Seal(No: 16 on diagram)
1 × 93210-48214 O-Ring(No: 17 on diagram)
If in doubt please contact us with your engine model and serial number.
Specification List
| Type | Seal Kit - Lower Gear Case | Sub-Type | - |
|---|---|---|---|
| Weight | - | Country of Origin | Japan |
| Tariff Code | 8484900090 |
