SIMRAD R2009 9 inch Radar Control and Display - 000-12186-001

R2009 Radar Display - 9 Inch

Dedicated Radar Display

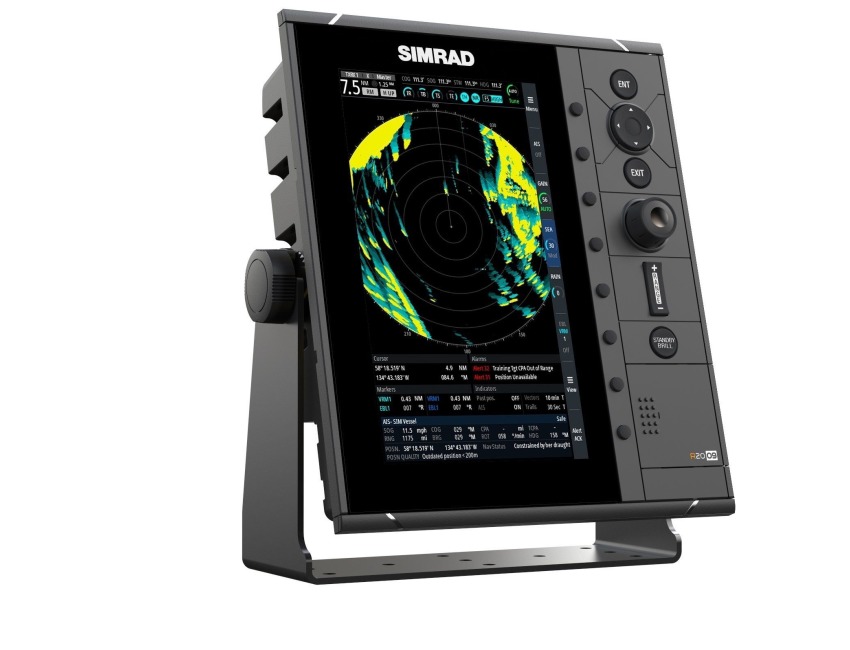

R2009 Radar Control Unit 9"
The Simrad R2009 is a dedicated Radar Control Unit with integrated 9-inch portrait display, compatible with a range of Simrad radar solutions including:
Halo Pulse Compression
Broadband 3G/4G
and HD Digital Radar.
An ideal safety and navigation accessory for offshore cruisers and sportfishing vessels, the R2009 offers versatile flush or bracket-mount installation options and intuitive keypad based operation for reliable control in all conditions.

Features:
Dedicated Radar Control Display
The R2009 radar control unit offers a professional-grade interface to Simrad Halo Pulse Compression, Broadband 3G/4G, and HD Digital radar solutions. Designed to match the modern styling of Simrad glass bridge displays and instruments, this dedicated radar display is a perfect complement to your NSS evo2 or NSO evo2 multifunction display system. Maximise your radars utility by adding its own dedicated screen and controls, without compromising on a clean and consistent helm design.
9-inch Portrait Radar Control Unit

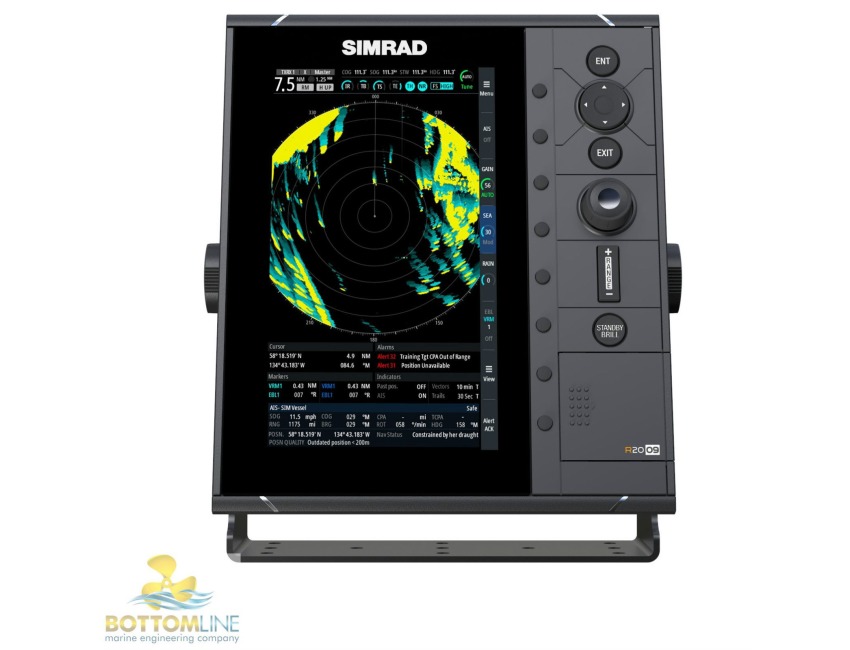

The R2009 maximises screen size where limited mounting space is available, with a compact 9-inch portrait display thats perfect for centre consoles. Its vertical layout allows for a radar picture almost the full width of the screen; alarms, indicators, and target tracking information are shown in widescreen panels above and below the main radar display.
Rugged Design with Flexible Mounting Options
Designed meet the needs of offshore cruisers, sportfishing and commercial vessels, the R2009/R3016 supports flush-mount installation in a console or dash, or bracket-mount installation with an included gimbal bracket. Watertight rear connectors mean the R2009 is IPX7 water-resistant from all sides, in either type of installation.

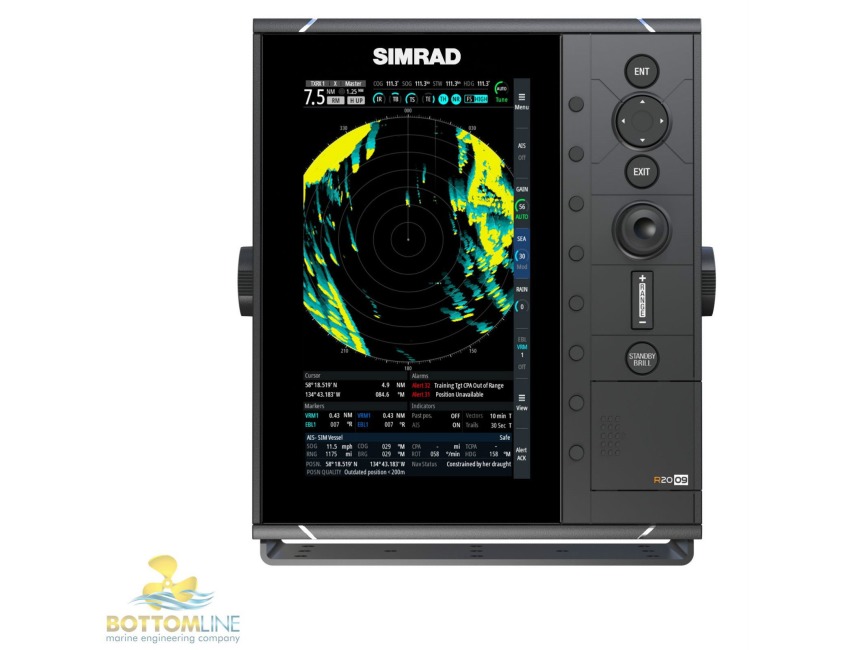

Keypad Operation with Direct-Access Menu Keys
The R2009 is operated by an integrated keypad and rotary dial. Direct-access menu keys beside the display operate adjacent on-screen menu options, for quick and intuitive access to key settings and features. With reliable, long-life operation and clear tactile feedback, the R2009s large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands.
Networking & Expansion

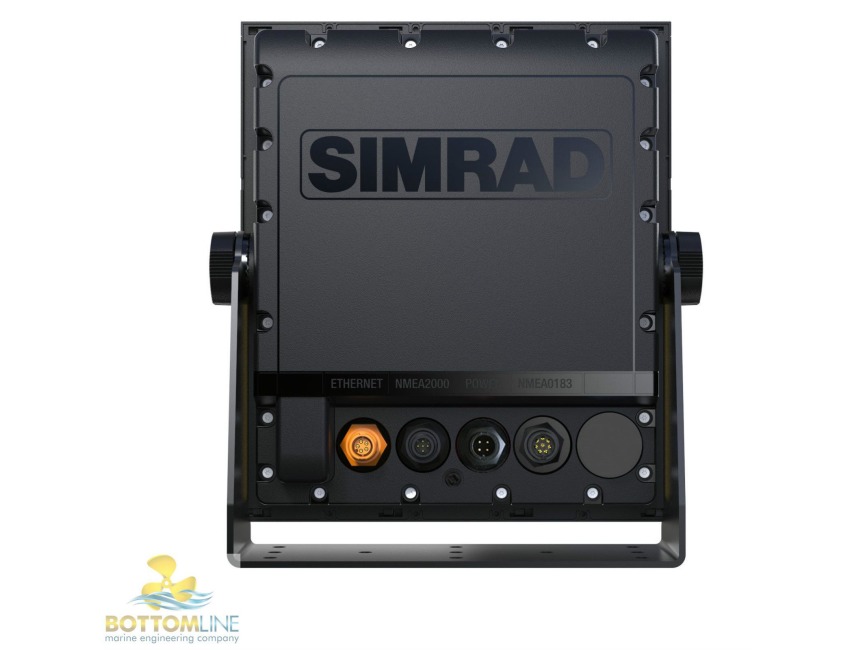

The R2009 Radar Control Unit connects to compatible Simrad radar systems via Ethernet, offering simple installation and easy networking of multiple control units and radar systems. The R2009 also includes dual NMEA 0183 ports and NMEA 2000 connectivity for compatible devices such as heading and speed sensors, AIS, and GPS.
HDMI Output for Display Mirroring
Connect a Simrad MO-series marine monitor or other compatible display to the R3016s HDMI output to create a secondary radar display mirroring the built-in screen. Add a second non-interactive radar display at another station, or combine an extra display with the optional Simrad O2000 wired remote to create a fully functional clone station ideal for dual-helm vessels.

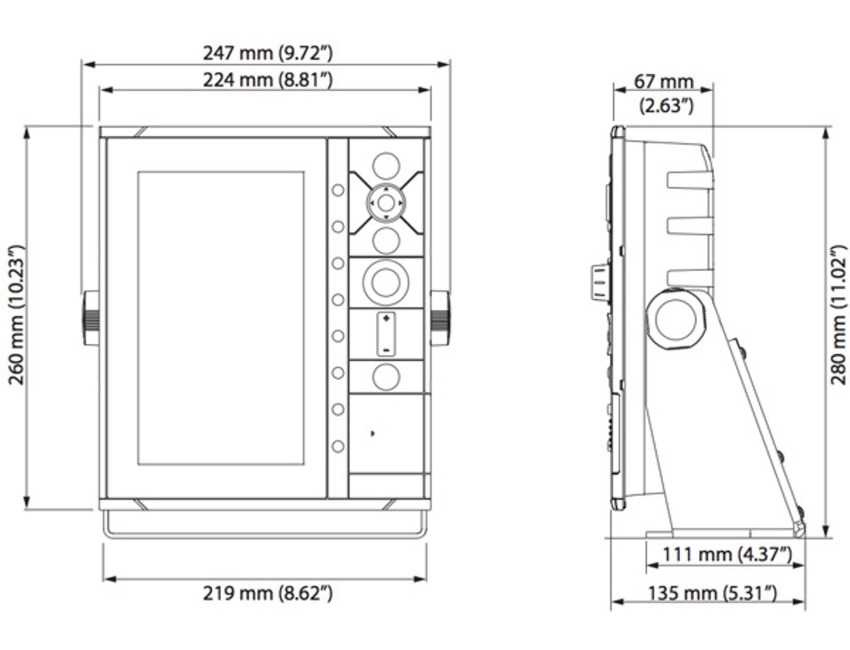

Technical/Environmental Product Height 260.1 mm / 10.24 in
Product Width 224.3 mm / 8.83 in Product Depth 82.3 mm / 3.24 in Product Weight 1.95 kg / 4.3 lb Operating Temperature -15C to +55C / 5F to 131F Water Resistance IPX7 Specified Standards CE, RTCM SC112 Radar for non-IMO vessels, IEC62252 European small craft radar Class B (Pending Approval)

Power Power Consumption 11 W Power Supply (Supply Voltage) 12-24 V DC

Display Display Resolution [pixels x pixels] 480 × 800 Display Size 9-inch portrait Display Type 9-inch LED-backlit Colour TFT LCD

Overview Screen Brightness
1200cd/m2 Languages 40 languages 2x NMEA0183, 1x NMEA2000, 1x Ethernet
