Description

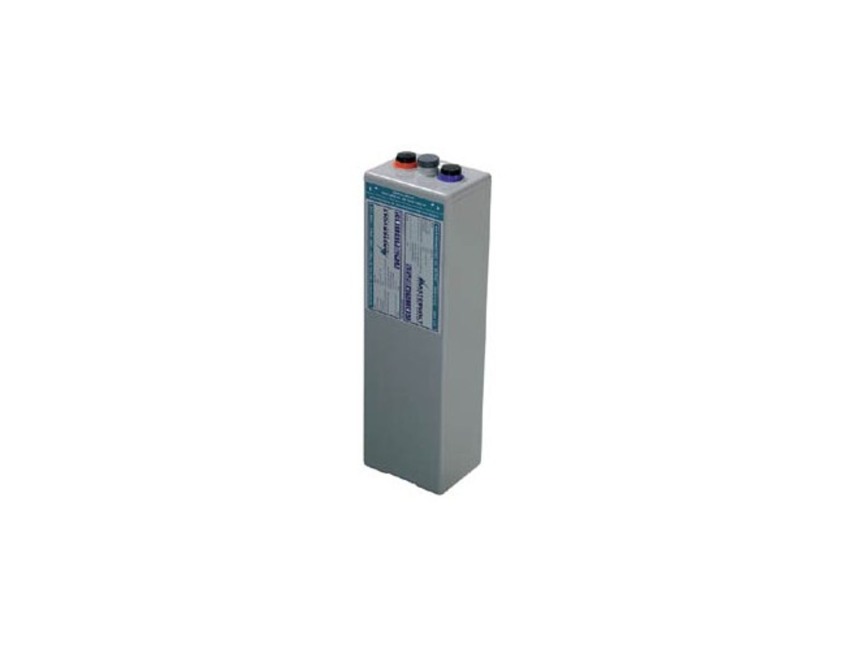

Mastervolt SV 580 2V GEL Battery - 68000580
Part No: 68000580
The Mastervolt 68000580 Gel battery boasts a very long lifespan along with fast recharge and deep discharging, making it ideal for use in large systems with intensive use. It can provide a high number of charge / discharge cycles and is built robustly to protect the internal components. The cell is designed to be used in series to create a 12 volt battery (6 units required) or 24 volt battery (12 units required).
General specifications
Nominal battery voltage: 2V
Nominal battery capacity C10: 580 Ah
Maximum charge current: 290A
Terminals: F-M8
Weight: 39 kg (86.0 lb)
Capacity - 580 Ah
Style - Gel
Brand - Mastervolt
Application - Domestic
Voltage - 2V
Height - 515mm (20.3")
Width - 208mm (8.2")
Depth - 168mm (6.6")
Length - 168mm (6.6")
Weight - 39 kg (86.0 lb)
Specification List
| Type | GEL Battery |
|---|
