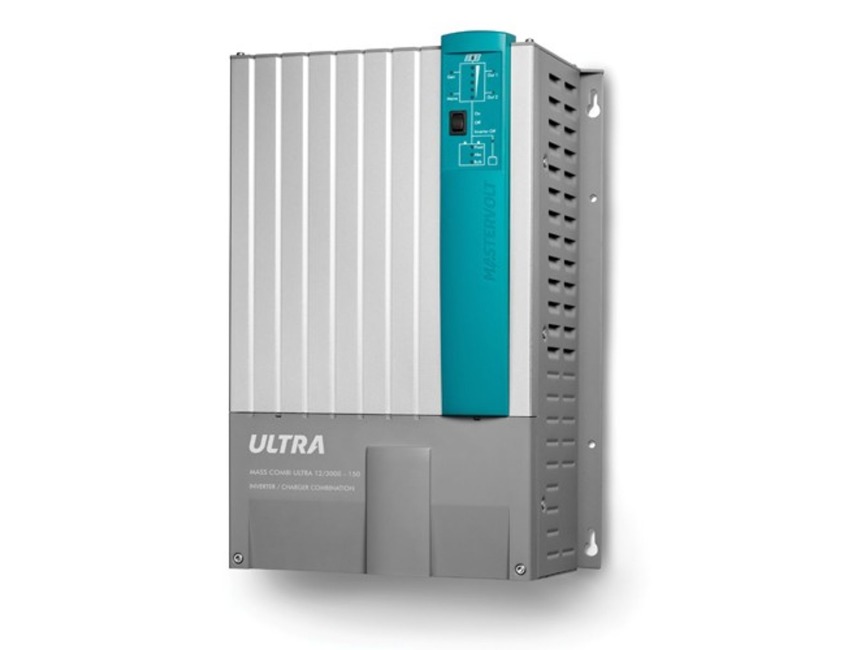

Mastervolt MASS COMBI ULTRA 24/3500-100 Inverter/Charger - 38023500

Click to enlarge

Codex

MPN 38023500

£3307.72

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Mastervolt MASS COMBI ULTRA 24/3500-100 Inverter/Charger - 38023500


Part No: 38023500


The Mastervolt Mass Combi Ultra combines a 3 step battery charger, a true sine wave power inverter as well as a solar charge regulator. The unit has two AC inputs and can be connected up to shore power, generators or solar panels for charging and the AC output will automatically switch between mains and inverter mode. It has two separate AC outputs, allowing critical equipment to be put on a different circuit to other appliances to protect them from heavy loads. The inverter/charger is built to be reliable and user friendly, and is equipped with MasterBus Combi integration for easy operation along with the rest of your Mastervolt system.
The Mass Combi Ultra features the Power Assist function, which prevents main fuses or breakers being tripped in the event of a weak power supply. It also eliminates power failures and dips to maintain reliable performance. The unit is equally capable at handling heavy loads and more sensitive loads, and with a true sine wave output will not cause harm or damage to your appliances. The high frequency technology used eliminates noise typically associated with power inverters, such as buzzing or humming.
This unit can provide up to 50% of charging current or inverter capacity without using any fan cooling, and so runs very quietly. Even when operating at maximum capacity, or performing in high ambient temperatures, the fan speed is regulated to only run in a linear way, meaning it wont spin too fast or make unnecessary noises. The solar regulator will prioritise solar energy over other sources of AC, ensuring you get the most cost effective and efficient method of energy input into the system. The regulator also uses MPPT technology to yield 30% more energy from solar power compared to others on the market using PWM. This model can be used in a 3 phase system, or you can combine up to 10 units in parallel for higher power outputs.
Specifications sine wave inverter
Nominal DC voltage: 24 V (19-32 V)
Output voltage: 180-260 V, adjustable
Output frequency: 50/60 Hz (± 0.005 ), configurable

Output waveform: true sine

Continuous power at 40 °C / 104 °F, cos phi 1: 3500 W

Max. peak load: 7000 W

Max. efficiency: ? 92

Max. ripple on DC (battery at full load): < 5 No-load power consumption on DC (ON/inverter OFF/OFF): 26 W / 4 W / 0 W

Energy saving mode consumption: 7 W

Parallel configuration: yes, up to 10 units (for larger systems, an external transfer system is required)

3-Phase configuration: yes, up to 3×3

Synchronise with mains/generator: yes

Specifications battery charger

Input voltage range: 184-275 V

Max. input current: 16 A

Max. charge current at 40 °C / 104 °F: 100 A at 28.5 V, adjustable

Secondary charger output voltage: 12/24 V selectable

Secondary charger output current: 10 A

Battery temperature sensor: yes, included

Battery voltage sense: through MasterShunt, otherwise automatic compensation

Specifications transfer system

AC input (generator): 50 A (switched)

AC input: 30 A (switched)

AC output 1: 67 A

AC output 2: 50 A (switched)

AC input fuse: no

Transfer speed: seamless (< 1 ms)

Transfer voltage range: 184-275 V, adjustable

Transfer frequency range: 35-68 Hz, adjustable

Specifications solar input (DC)

Input voltage range: 30-100 V

Max. PV peak power: 750 Wp

Max. input current: 19 A

Max. charge current: 25 A at 28.5 V

MPP Tracker: full power at 30-80 V

General specifications

Galvanisedanic isolation: yes

Display/read-out: LED display

Dimensions, hxwxd: 472 × 318 × 178mm (18.6 × 12.5 × 7.0 inch)

Weight: 15.3 kg (33.7 lb)

Compliance: CE, E-mark, ABYC, RMRS

Technical specifications

Charge characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/MLI/ flooded/spiral/traction

Recommended battery capacity: ~ 200-600 Ah (based on gel batteries, may differ for other types)

Ground relay: yes, configurable

Temperature range (ambient temp.): -25 °C to 60 °C, derating > 40 °C (13 °F to 140 °F)

Cooling: vario fan

Protection degree: IP23 (vertical mounting)

Safety class: IEC protection class I

Humidity protection: conformal coating, max. 95
relative humidity, non condensing
Protections: over temperature, overload, short circuit, high/low battery voltage
Power Assist: yes
MasterBus compatible: yes

Brand - Mastervolt
Voltage - 24V DC
Height - 472mm (18.6")
Width - 318mm (12.5")
Depth - 178mm (7.0")
Weight - 15.3 kg (33.7 lb)
Temperature Range - Ambient Temperature: -25 °C to 60 °C, derating > 40 °C (-13 °F to 140 °F)

Specification List

Type Inverter / Charger
