Mastervolt EASYCHARGE PORTABLE Battery Charger 4A 6/12V - 43510402
Click to enlarge
Codex
MPN 43510402
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

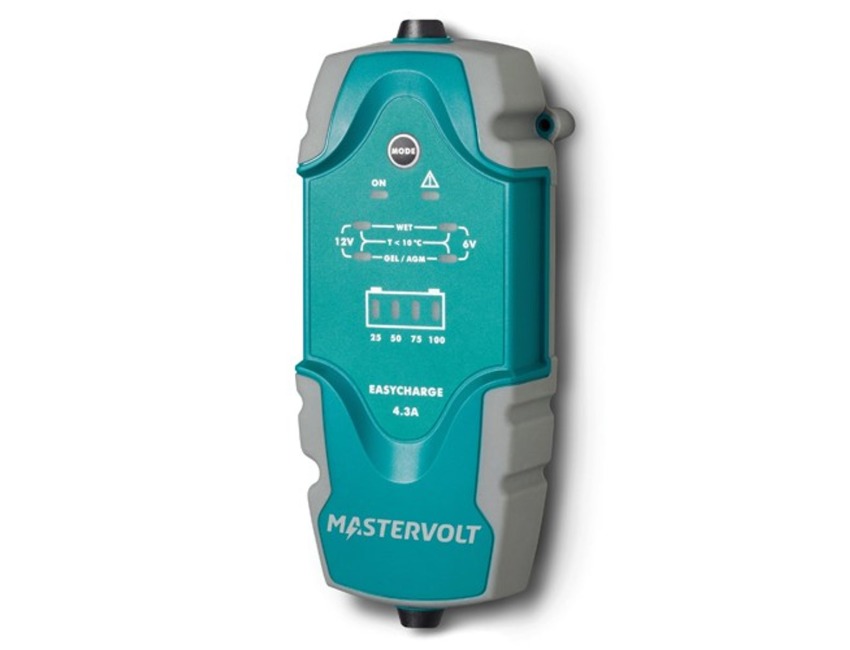

Mastervolt EASYCHARGE PORTABLE Battery Charger 4A 6/12V - 43510402
Part No: 43510402
The Mastervolt EasyCharge 43510402 is a portable battery charger designed to be highly efficient and simple to use, accepting a wide range of voltage inputs to be suitable for round the world use. It can provide 6V or 12V DC output so is suitable for use on boats, cars, motorcycles and camper vans. It is built to IP65 waterproofing standards, and can connect by ring terminals or by crocodile clips, with both leads included with the charger.
General specifications
Total charge current: 4.3 A
Recommended battery capacity: maintain: 14 to 120 Ah
Recommended battery capacity: charge: 14 to 90 Ah
Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz
AC connection: 1.8 m (6 ft) cable + UK plug
DC connection: ring and alligator clip connections, with integrated fuse
Galvanisedanic isolation: yes
Dimensions, hxwxd: 161 × 72 × 43.7mm (6.3 × 2.8 × 1.7 inch)
Weight: 0.9 kg (2.0 lb)
Compliance: CE, ABYC
Technical specifications
Charge characteristic: IUoUo, automatic 3-step+ for Gel/AGM/flooded/Lithium Ion
Temperature range (ambient temp.): -20 °C to 40 °C (-4 °F to 104 °F)
Protection degree: IP65
Protections: short circuit, reverse polarity, over voltage, current limited, over temperature
MasterBus compatible: no
Key Features
With Mastervolt 3-step+ charge characteristic
Suitable for any type of battery, including Lithium Ion (model 4.3 A)
Full power up to 40 °C
Includes cable & Euro plug (optionally also available with UK plug)
Simple switching between 6 V and 12 V
Portable and waterproof
Easy to connect through ring terminals, or alligator clips (included)
Brand - Mastervolt
Voltage - 6V - 12V DC
Amps - 4A
Height - 161mm (6.3")
Width - 72mm (2.8")
Depth - 43.7mm (1.7")
Weight - 0.9 kg (2.0 lb)
Temperature Range - Ambient Temperature: -20 °C to 40 °C (-4 °F to 104 °F)
Specification List
| Type | Battery Charger |
|---|
