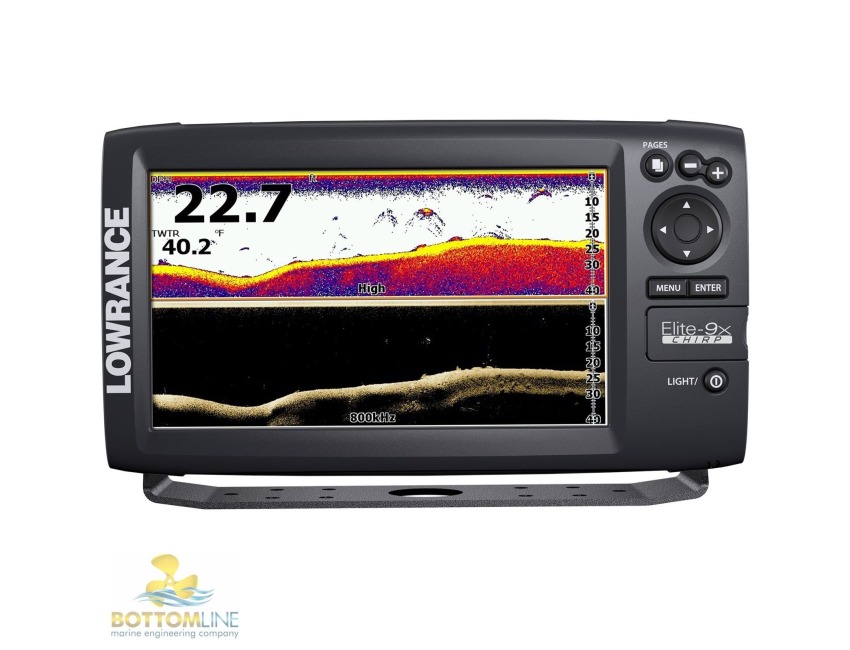

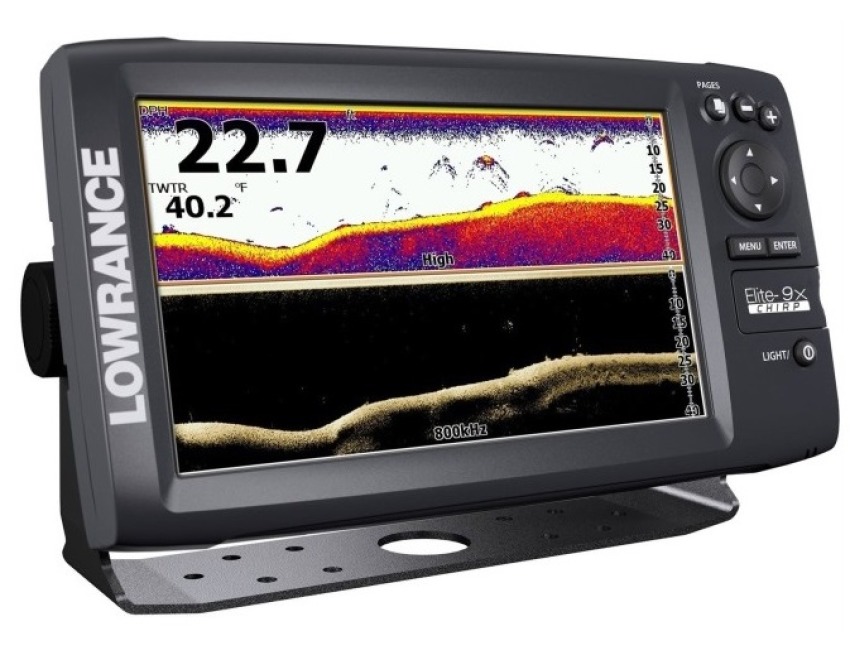

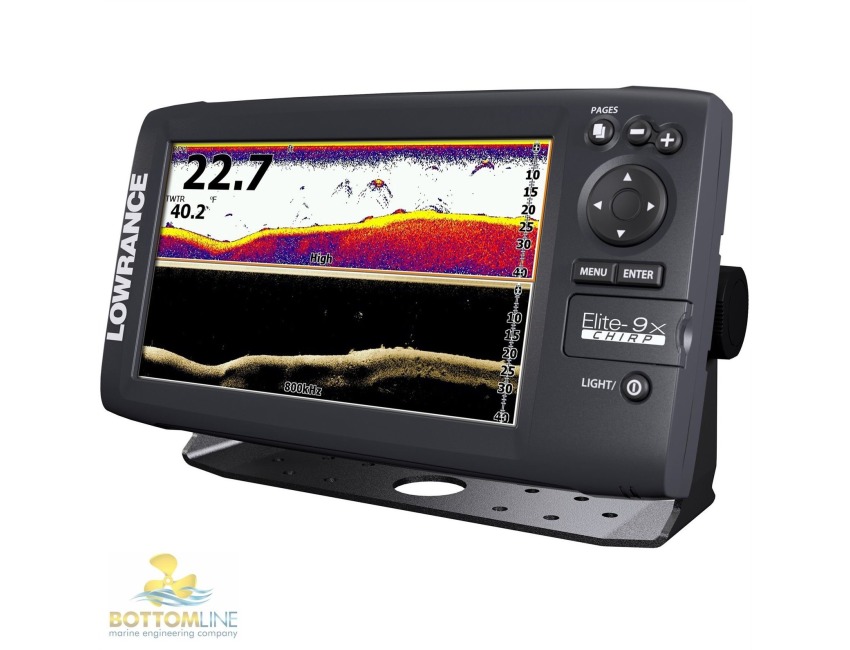

Lowrance Elite 9x CHIRP HDI Fish finder- Dual Imaging - c/w Hybrid Transducer

Click to enlarge

MPN 000-12184-001

£465.99

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

ELITE-9x CHIRP (New old stock - 6 months warranty)

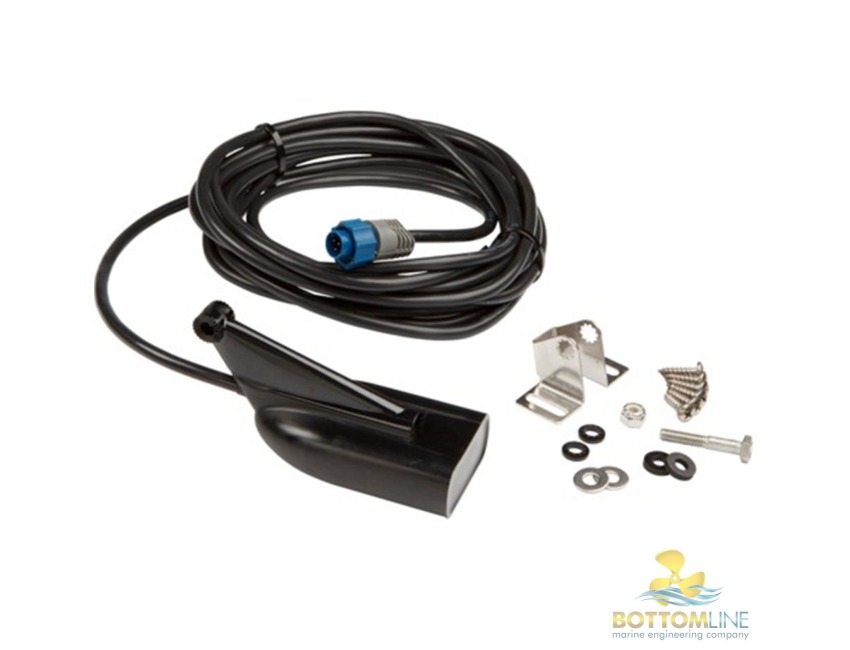

Complete with transom mounted skimmer 83/200 kHz + 455/800 kHz Chirp / downscan transducer. Supplied with sun cover.

9-inch fishfinder that combines CHIRP Sonar with DownScan Imaging.
The Elite-9x CHIRP includes all of the proven features recently launched with the highly successful Elite-7x HDI with the addition of CHIRP sonar technology -
- providing greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see bait fish and game fish targets.

CHIRP sonar advantages:

- Easier to identify and distinguish bait and game fish targets
- Better target identification at greater depths
- Mark fish clearly at faster boat speeds Exclusive Elite-9x CHIRP advantages:
- Multiple CHIRP ranges from a single transducer
- CHIRP sonar performance with a greater number of affordable transducers, including the Lowrance HDI Skimmer
- View multiple CHIRP sonar settings on one display
DownScan Imaging provides picture-like images of fish-holding structure beneath a boat. Selectable single-frequency sonar operation with award-winning Broadband Sounder performance. Brilliant Elite color display for enhanced widescreen visibility and viewing detail in all conditions DownScan Overlay technology overlays DownScan Imaging onto CHIRP Sonar Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly TrackBack to review recorded sonar history including structure, transitions or fish targets. New page selector menu with quick access to all features using one-thumb operation Multi-Window Display lets you quickly choose from pre-set page layouts - including a three-panel view.

Specifications
Display 9" (229mm) ULTRA Widescreen 16-bit colour TFT 800 × 480
Backlighting: 11-Level LED
Power Output: RMS (PTP) Max 500W RMS
Operating Frequency 455/800 kHz (DownScan Imaging), Med, High,(CHIRP),/83kHz/200kHz
Languages: 14
Warranty: 6 months

Specification List

Type Fishfinder Sub-Type CHIRP Fisgfinder
Country/Region of Manufacture Mexico Model Elite 9x CHIRP
