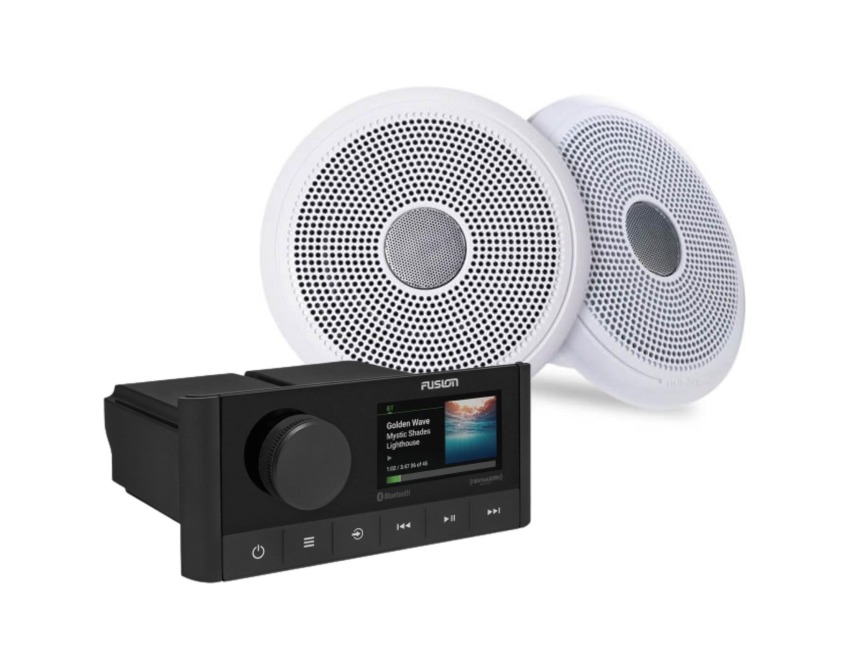

Fusion RA210 + XS SPEAKERS - Marine Audio System Bundle - MS-RA210KCW

Fusion RA210 + XS SPEAKERS - Marine Audio System Bundle

EVERYTHING YOU NEED TO AMPLIFY THE MOMENT

Outfit your boat with an exceptional sound system at an outstanding value with a MS-RA210 and XS Series speaker kit put the perfect soundtrack at your fingertips.

Features:

Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
Easily control music from your compatible Garmin MFD1, smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via Bluetooth® technology2 from the Fusion-Link™ app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
MS-RA210

IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.

MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The Fusion speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.

XS SERIES SPEAKERS

DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT
The Fusion speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.

MODERN DESIGN AND AESTHETICS
Tested to international standards for pressure and water ingress, the Fusion speakers are designed and built for superior quality and robustness.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The Fusion speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.

SPECIFICATIONS

MS-RA210

Physical dimensions (HxWxD): 68 × 157 × 126.6 mm
Weight: 350 g
Water rating: IPX6 and IPX7 (front panel only, when properly installed)
Power input: 10.8-16 VDC
Operating temperature range: 32° to 122° F (0° to 50° C)
Current (max.): 15 A
NMEA 2000® LEN: 1 (50 mA)
Bluetooth® wireless range: Up to 30 ft (10 metres)
ANT wireless range: Up to 10 ft (3 metres)
Wireless frequencies/protocols: Bluetooth 2.4 GHz @ +12 dBm nominal
Compass-safe distance: (150 mm)
Display: 2.7? optically bonded colour LCD
Built-in amplifier: Class-D (minimum 4 Ohm impedance)
Peak power: 200 W
Rated power output (4 Ohm): 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing: Yes (with preconfigured DSP profiles)
Fusion-Link™ control: Yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology: 2 zones
Bluetooth wireless technology: Yes
ANT wireless technology: Yes
SiriusXM-ready: Yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready: Yes (requires DAB100A antenna module)
NRX remote compatibility: Yes
Multi-language interface: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish
Software updates: USB
Sources: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only)
Auxiliary inpu: One RCA input (AUX)
NMEA 2000: 1 port
USB 2.0: 1 port
SiriusXM satellite radio: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio: One Motorola antenna connector port
Speaker: 2 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer): 2 zones (requires external amplification)
Line out: 2 (1 x L + R per zone, requires external amplification)
Subwoofer out: 1 x mono output (requires external amplification)
6.5" XS Series Classic White Speaker Specifications

Physical dimensions (HxWxD): 6.97? x 3.19? (177 × 81 mm)
Water rating: IP65
Configuration: Coaxial
Speaker size 6.5?
Peak power (Watts): 200 W
RMS power (Watts): 50 W
Sensitivity (1 watt/1 metre): 91 dB
Frequency response: 80 Hz-18 kHz
Nominal impedance: 4 ohm
Recommended amplifier power (RMS): 20-150 W/Ch
Operating temperature range: 32° to 122° F (0° to 50° C)
Voice coil diameter: 1.18?
Cone material: Polypropylene cone with cloth surround
Tweeter type: Aluminium dome
Compass-safe distance: 122? (310 cm)
Mounting diameter clearance: 135 mm)
Mounting depth clearance: 2.64? (67 mm)
