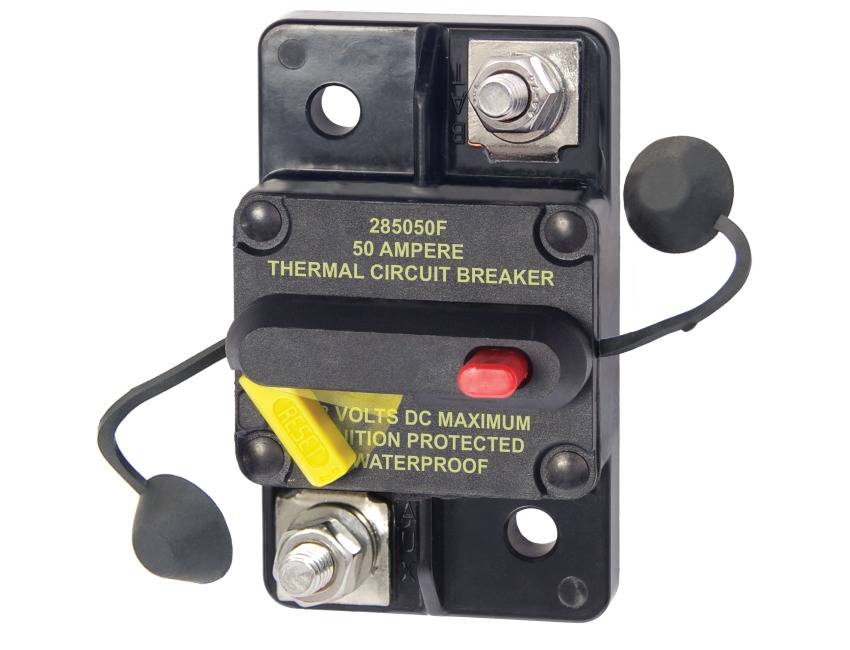

Blue Sea - 285-Series Circuit Breaker - Surface Mount 50A - PN. 7183

Click to enlarge

MPN 7183

£73.68

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description


Blue Sea - 285-Series Circuit Breaker - Surface Mount

  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirementsWeather Resistant
  • Combines switching and circuit breaker function into one unit*"Trip Free" - cannot be held closed after trip


Specifications:

Amperage - 50A

Maximum Voltage - 48V DC

Mounting - Surface Mount

Circuit Breaker Type - Thermally responsive Bi-metal blade

Terminal Stud Torque - 50 in-lb (5.65 Nm)

Interrupt Capacity (The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage) - 3000A @ 48V Achieved using SAE J1625

Minimum Operating Temperature -40° C

Maximum Operating Temperature 85° C

Circuit Breaker Class - Type III - switchable/manual reset - trip free

Terminal Stud - M6 (accepts 1/4" Ring Terminal)

Weight - 0.152 Kg

Specification List

Type Circuit breaker Weight 0.152 Kg
Sub-Type 50 amp
